Hardware Power Management

Power Management

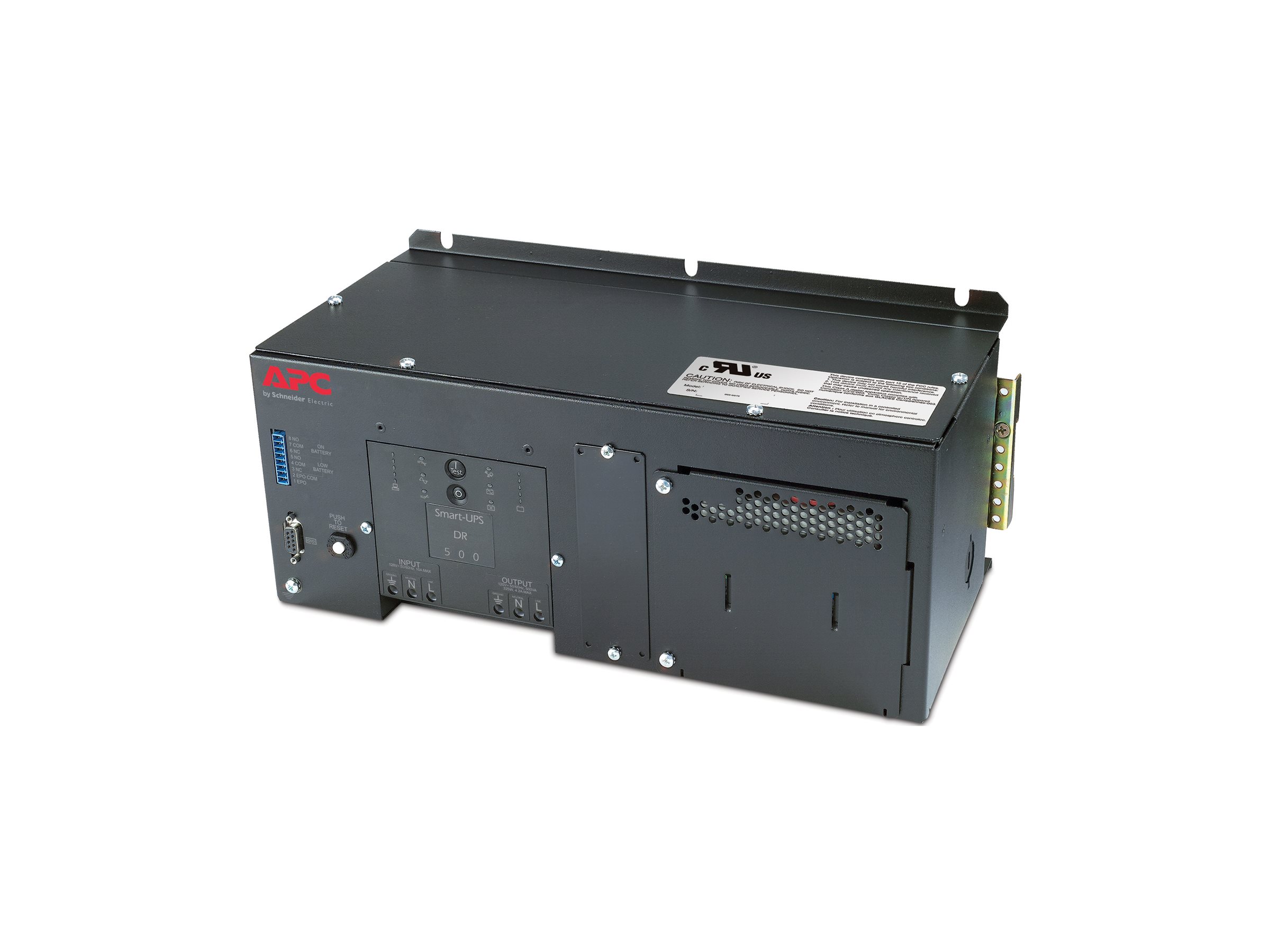

500VA 120V HARDWIRED DIN RAIL PANEL MOUNT UPS WITH HIGH TEMP BATT

$1,399.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

500VA 120V HARDWIRED DIN RAIL PANEL MOUNT UPS WITH HIGH TEMP BATT

Additional Details
Price:	$1,399.00
Mfr Part #:	SUA500PDR-H
SHI Part #:	27309597
Category:	Power conditioning equipment
UNSPSC:	39121000
Manufacturer:	APC by Schneider Electric
Product Type:	Hardware

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)

2 m
for P/N: SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT, SRYL15K15XLT24

$44.00

APC Simple Signaling

Serial cable
for P/N: SRV1KA-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW, SRYL15K15RMX LT

$109.00

Network Interface Cards

APC Network Management Card 3 with PowerChute Network Shutdown

Remote management adapter
1GbE
1000Base-T
for P/N: SMT1000RM1U, SMT750RM1U, SRTL10KRM4UT, SRTL8KRM4UT, SRYL5K20XLT18, SRYL5K20XLT24

$552.00

APC Network Management Card 3 with PowerChute Network Shutdown & Environmental Monitoring

Remote management adapter
1GbE
1000Base-T
for P/N: SMT1000RM1U, SMT750RM1U, SRTL10KRM4UT, SRTL8KRM4UT, SRYL5K20XLT18, SRYL5K20XLT24

$864.00

Warranties

APC Extended Warranty Service Pack

Technical support
phone consulting (for UPS and power devices)
1 year
24x7
for P/N: BGM1500, BGM1500B, BV1000, BV800, BVN650M1, BVN650M1-CA, BVN900M1, BVN900M1-CA

$71.00

APC Extended Warranty Service Pack

Technical support
phone consulting (for UPS and power devices)
3 years
24x7
for P/N: BE670M1, BE850G2, BR1200SI, BR1600MI, BR1600SI, BR900MI, BV1000, BV650, BV800

$152.00

General Information
Category	Power conditioning equipment
Description	500VA 120V HARDWIRED DIN RAIL PANEL MOUNT UPS WITH HIGH TEMP BATT
Manufacturer	APC by Schneider Electric
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	17.1 cm
Dimensions & Weight / Height	14.8 cm
Dimensions & Weight / Weight	11.48 kg
Dimensions & Weight / Width	36.2 cm
General / Subcategory	UPS
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	RS-232
Packaged Quantity	1
Power Device / Form Factor	DIN rail mountable
Power Device / Output Connector Qty	1
Power Device / Power Capacity (VA)	500 VA
Power Device / Voltage Required	AC 120 V
Product Type	UPS
Service & Support / Type	2-year warranty
Battery
Quantity	1
Recharge Time	2.5 hour(s)
Technology	Lead acid
Dimensions & Weight
Depth	17.1 cm
Height	14.8 cm
Weight	11.48 kg
Width	36.2 cm
Dimensions & Weight (Shipping)
Shipping Depth	29.7 cm
Shipping Height	29.7 cm
Shipping Weight	13.3 kg
Shipping Width	48.1 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	50 °C
Min Operating Temperature	0 °C
Sound Emission	55 dBA
Expansion / Connectivity
Expansion Slots	SmartSlot
Interfaces	1 x RS-232 - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off)
General
Battery Enclosure Type	Internal
Device Type	UPS - DIN rail mountable
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Cables Included	Signal cable
Compliant Standards	UL 1449
Features	Audible alarm, LED indicators, Remote Emergency Power Off (REPO)
Networking
Remote Management Interface	RS-232
Power Device
Frequency Provided	57 - 63 Hz
Frequency Required	50/60 Hz
Input Connectors	1 x hardwire 3-wire (1PH + N + G)
Input Voltage	AC 120 V
Input Voltage Range	AC 82 - 144 V
Input Voltage Range (Adjustable)	AC 75 - 154 V
Output Voltage	AC 120 V 57 - 63 Hz
Power Capacity	325 Watt / 500 VA
Power Output Connectors Details	1 x hardwire 3-wire (HN + E)
Surge Energy Rating	540 Joules
Surge Suppression	Yes
