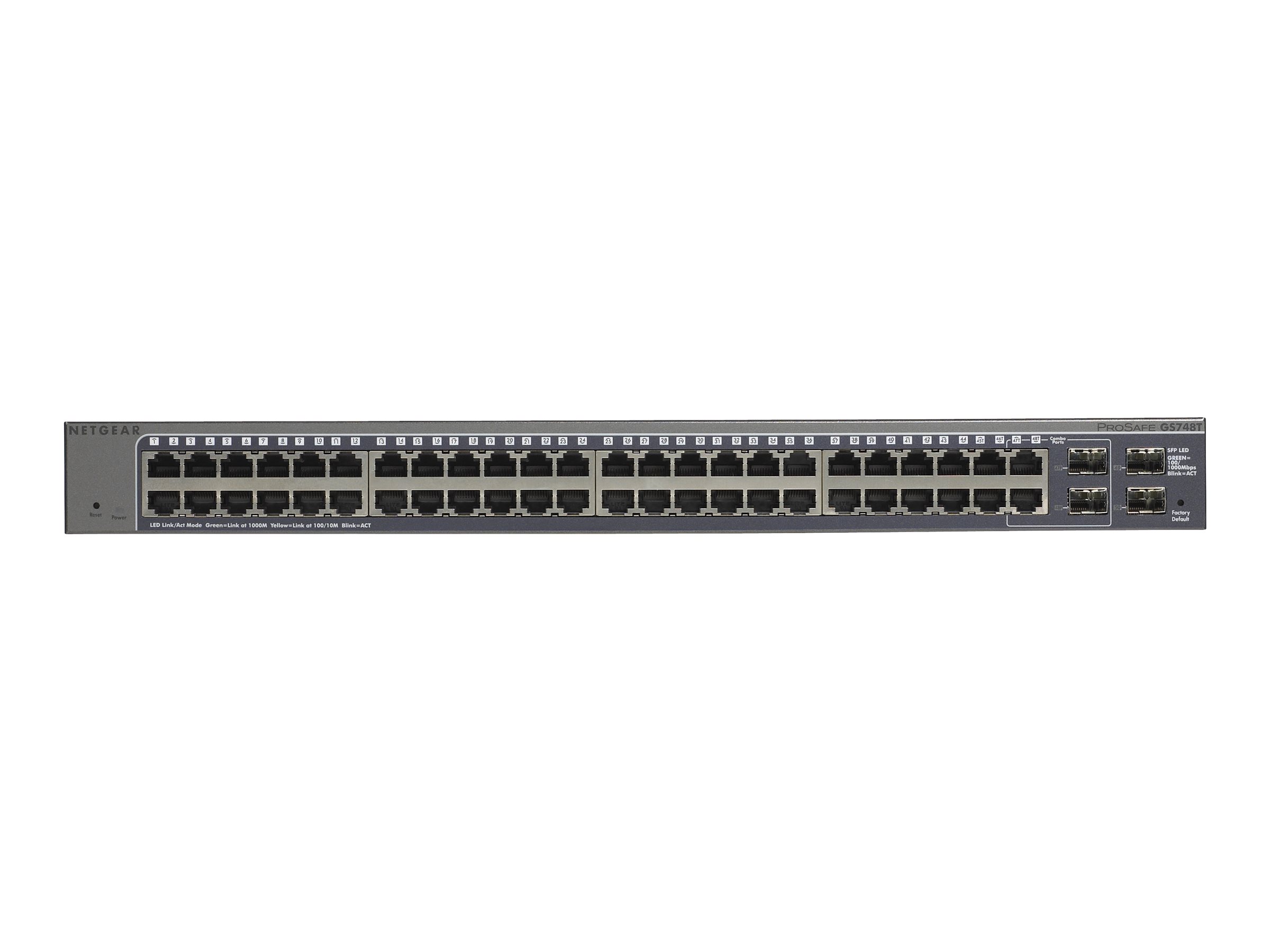

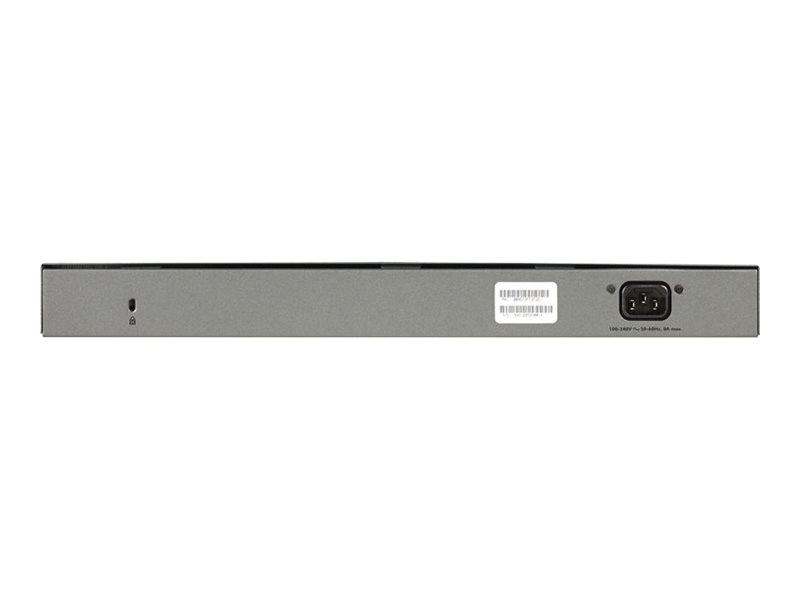

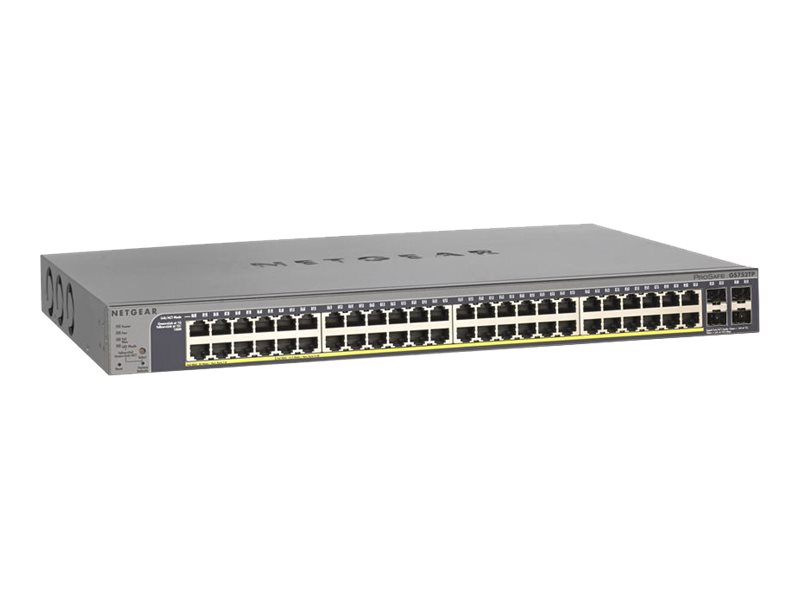

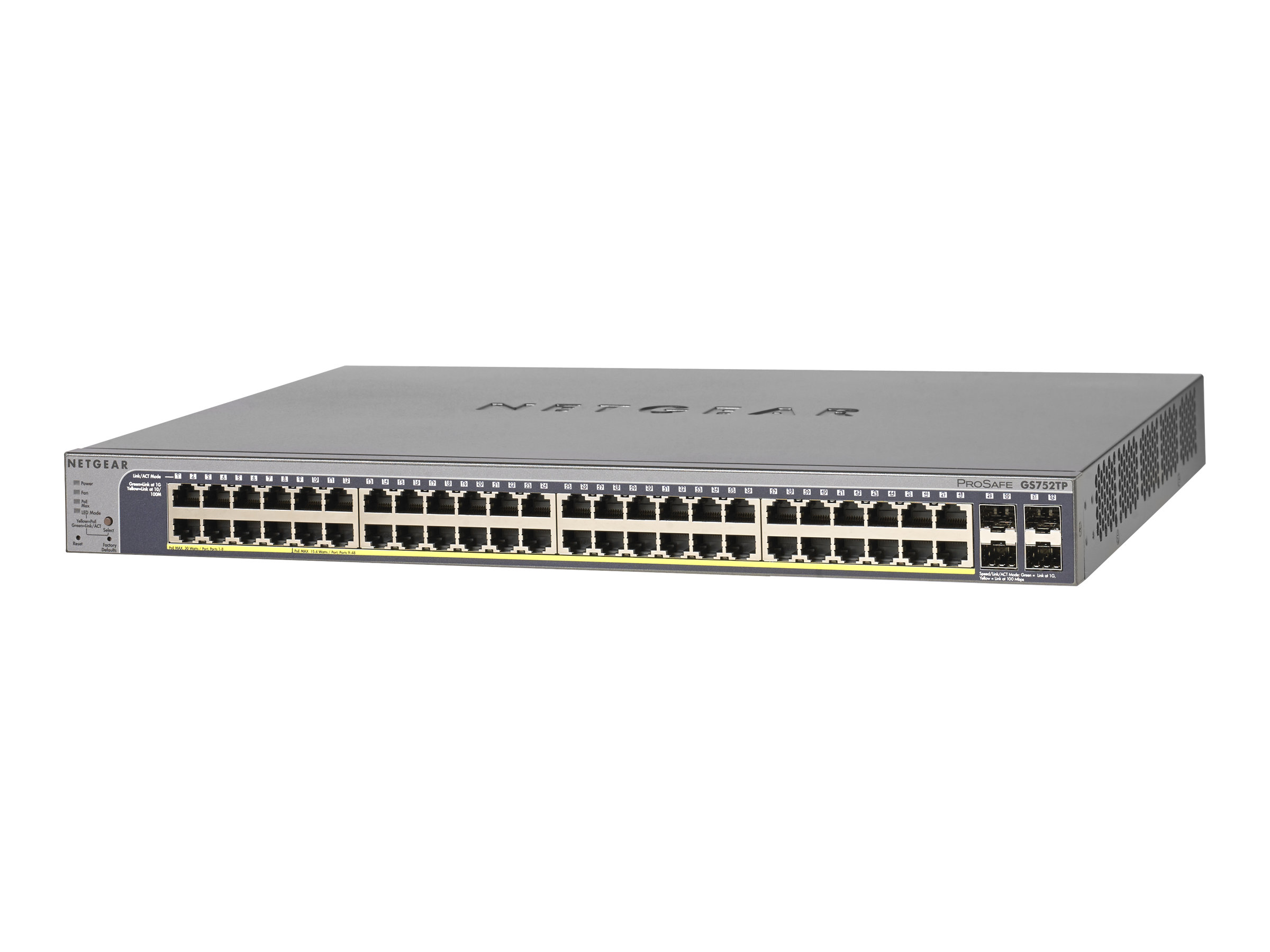

NETGEAR GS752TP 48-Port Gigabit PoE Smart Managed Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR GS752TP 48-Port Gigabit PoE Smart Managed Switch
- Switch
- smart
- 8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE)
- desktop, rack-mountable
- PoE+ (384 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GS752TP-100NAS |
| SHI Part #: | 26864181 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR GS752TP 48-Port Gigabit PoE Smart Managed Switch - Switch - smart - 8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) - desktop, rack-mountable - PoE+ (384 W) |
| Manufacturer | NETGEAR |
| MSRP | $807.67 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31.6 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 5.1 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits | North America |
| Networking / Form Factor |
|
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | NETGEAR lifetime warranty |
| Dimensions & Weight | |
| Depth | 31.6 cm |
| Height | 4.3 cm |
| Weight | 5.1 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | Virtual interfaces (VLANs): 256 |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 48 ports - smart |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, auto-sensing per device, auto-negotiation, trunking, IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, MLD snooping, reset button, LACP support, LLDP support, DHCP client, Energy Efficient Ethernet |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 8K entries |
| Performance | Bandwidth: 104 Gbps |
| PoE Budget | 384 W |
| Ports | 8 x 10/100/1000 (PoE+) + 40 x 10/100/1000 (PoE) |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS |
| Routing Protocol | Static IP routing |
| Status Indicators | Power, PoE, link/activity, fan |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
| Compliant Standards | UL, cUL, EN55024, CISPR 22, EN50082-1, CB, CCC, EN 60950-1, FCC Part 15 A |
| Localization | North America |
| Rack Mounting Kit | Included |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
