ViewSonic TD2420 - LED monitor
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ViewSonic TD2420 - LED monitor
- 24" (23.6" viewable)
- touchscreen
- 1920 x 1080 Full HD (1080p)
- 200 cd/m²
- 1000:1
- 5 ms
- HDMI, DVI-D, VGA
- speakers
- black
| Additional Details | |
|---|---|
| Mfr Part #: | TD2420 |
| SHI Part #: | 26833133 |
| Category: | Touch screen monitors |
| UNSPSC: | 43211903 |
| Manufacturer: | ViewSonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Touch screen monitors |
| Description | ViewSonic TD2420 - LED monitor - 24" (23.6" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) - 200 cd/m² - 1000:1 - 5 ms - HDMI, DVI-D, VGA - speakers - black |
| Manufacturer | ViewSonic |
| UNSPSC | 43211903 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.48 cm |
| Dimensions & Weight / Height | 42.19 cm |
| Dimensions & Weight / Weight | 3 kg |
| Dimensions & Weight / Width | 55.59 cm |
| Display / Diagonal Size | 24 in |
| Display / Diagonal Size (metric) | 61 cm |
| Display / Interface |
|
| Display / Native Resolution | 1920 x 1080 |
| Display / Type | LED-backlit LCD monitor |
| Header / Brand | ViewSonic |
| Image Brightness | 200 cd/m² |
| Input Device / Type | Touchscreen |
| Miscellaneous / Compliant Standards |
|
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| System Requirements / OS Required |
|
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo - integrated |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Backlight Technology | WLED |
| Brightness | 200 cd/m² |
| Color | Black |
| Contrast Ratio | 1000:1 |
| Controls & Adjustments | Brightness, contrast, color balance, input select |
| Diagonal Size | 24" |
| Dimensions (WxDxH) | 55.59 cm x 17.48 cm x 42.19 cm - with stand |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class B |
| Energy Consumption per Year | 33 kWh |
| Features | OptiSync, HDCP, Eco-Mode, SRS Premium Sound, Mega Dynamic Contrast Ratio |
| Horizontal Refresh Rate | 24 - 82 kHz |
| Horizontal Viewing Angle | 170 |
| Native Resolution | Full HD (1080p) 1920 x 1080 |
| Response Time | 5 ms |
| Screen Coating | 7H Hard Coating |
| Vertical Refresh Rate | 50 - 75 Hz |
| Vertical Viewing Angle | 160 |
| Viewable Size | 23.6" |
| Weight | 3 kg |
| Input | |
| Movement Detection Technology | Optical |
| Type | Touchscreen - touchscreen |
| Mechanical | |
| Display Position Adjustments | Tilt |
| Tilt Angle | -5/+20 |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | |
| Backlight Life | 30,000 hours |
| Cables Included |
|
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | FCC Class B certified, UL, C-Tick, BSMI, cUL, ICES-003, SASO, CB, CCC, PSB, RoHS, WEEE, GOST-R, E-Standby, UkrSEPRO, KC, ERP |
| Features | Security lock slot (cable lock sold separately) |

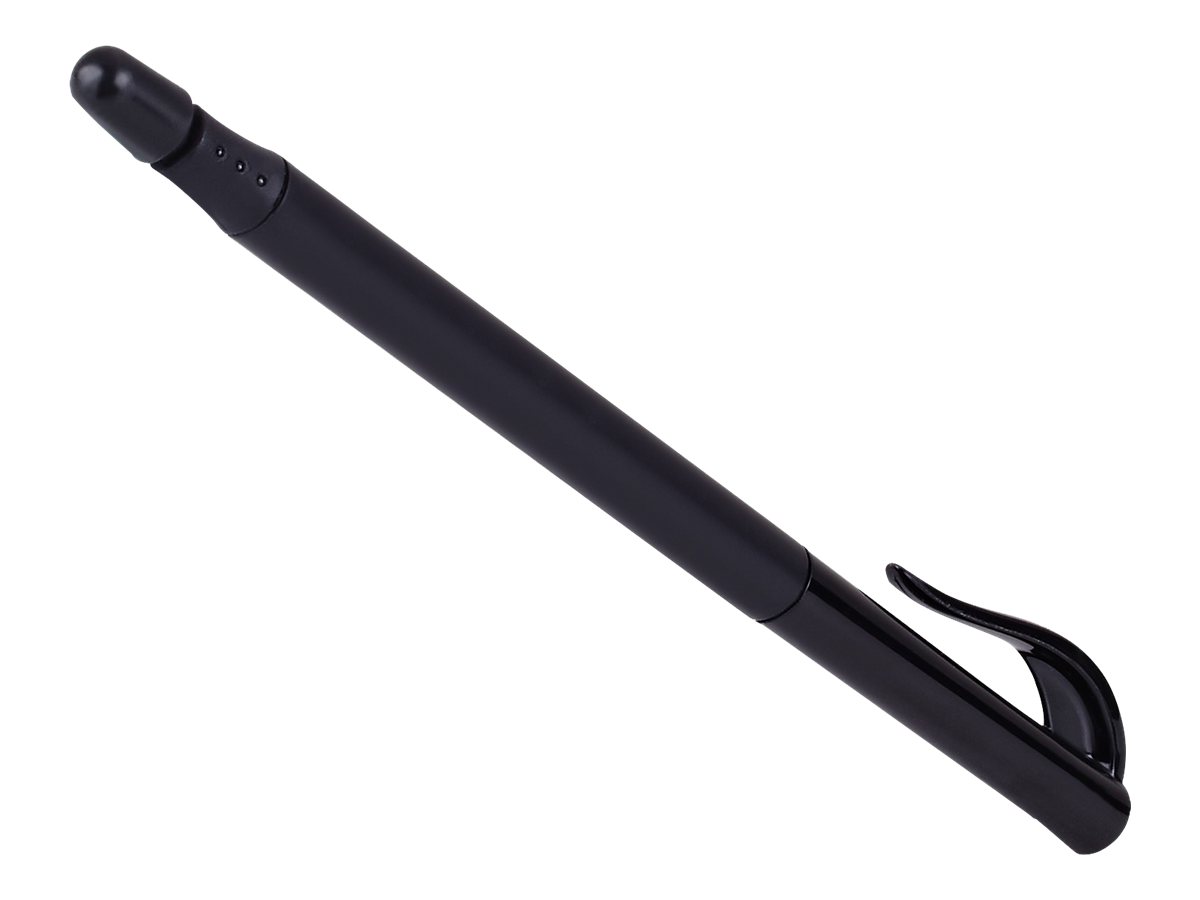

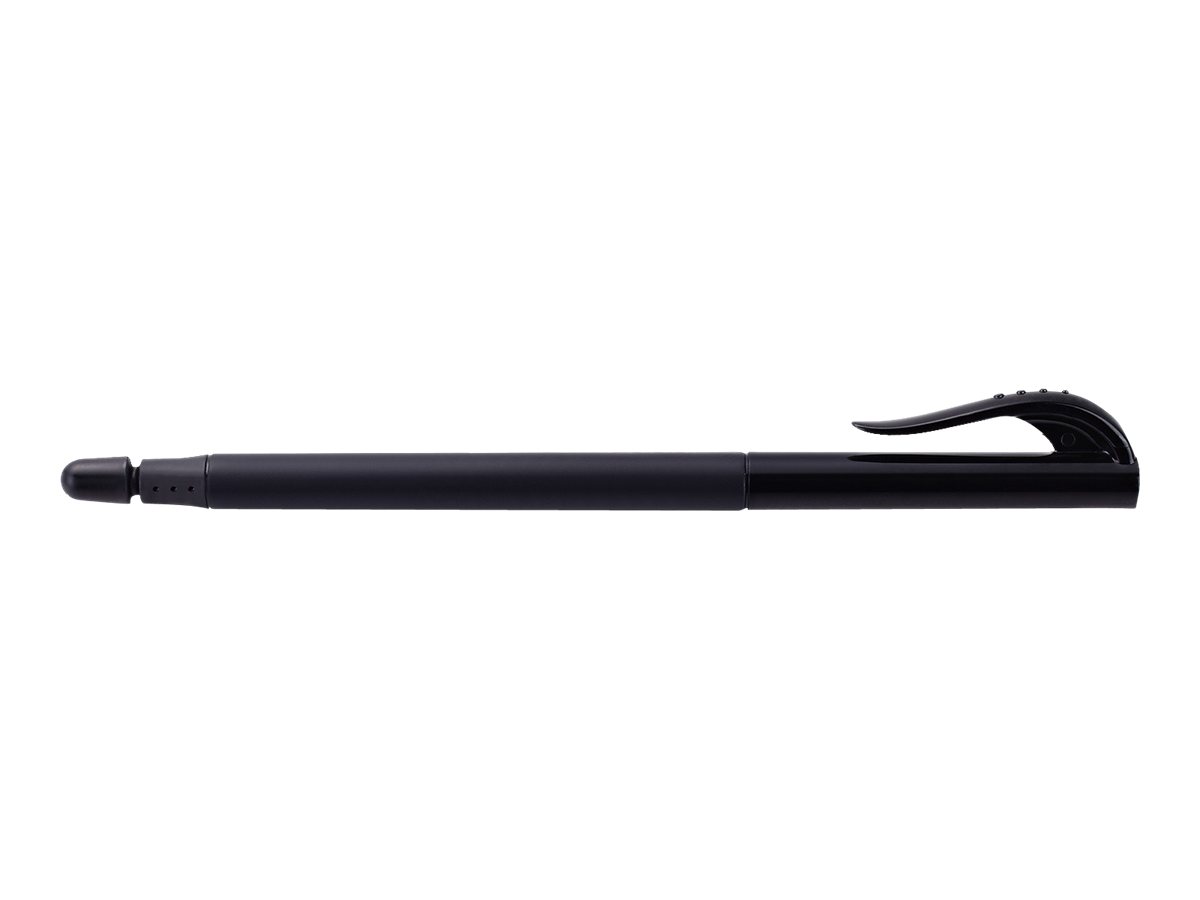

| Included Accessories | Stand, stylus |
| Security Slot Type | Kensington security slot |
| Supported Windows 7 Features | Windows Touch |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (On mode) | 23 W |
| Power Consumption (Typical) | 25 Watt |
| Power Supply | Internal |
| Software / System Requirements | |
| Included Software | ViewSonic Wizard |
| OS Required | Microsoft Windows 7, Windows 8 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
