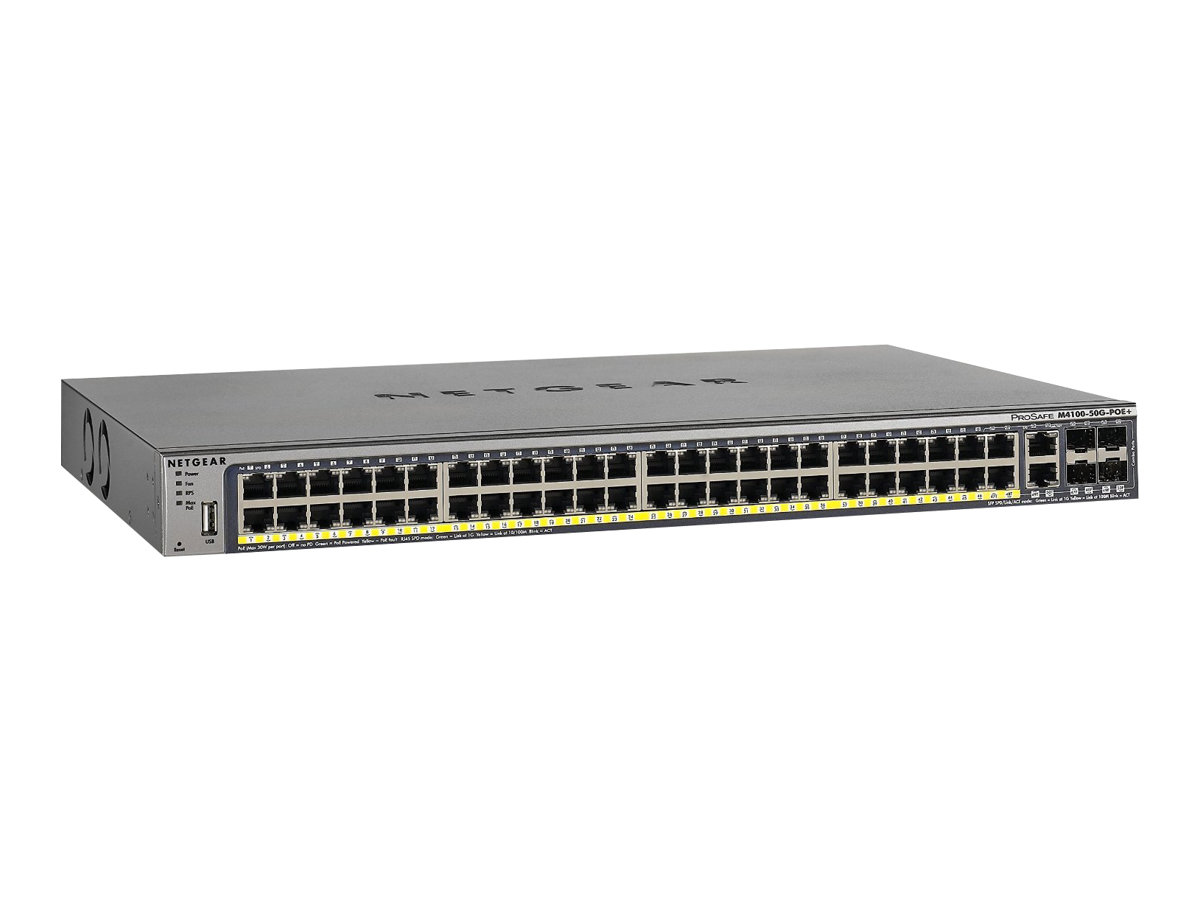

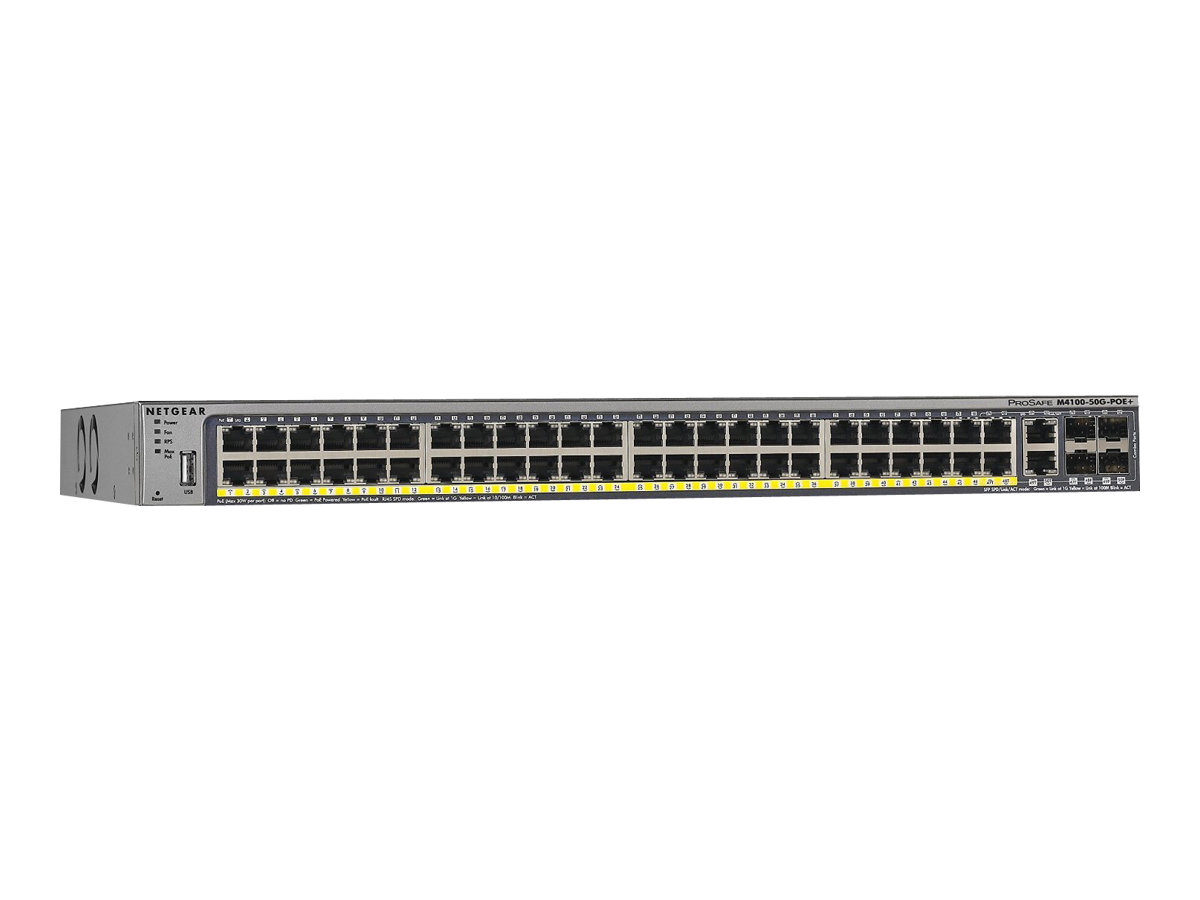

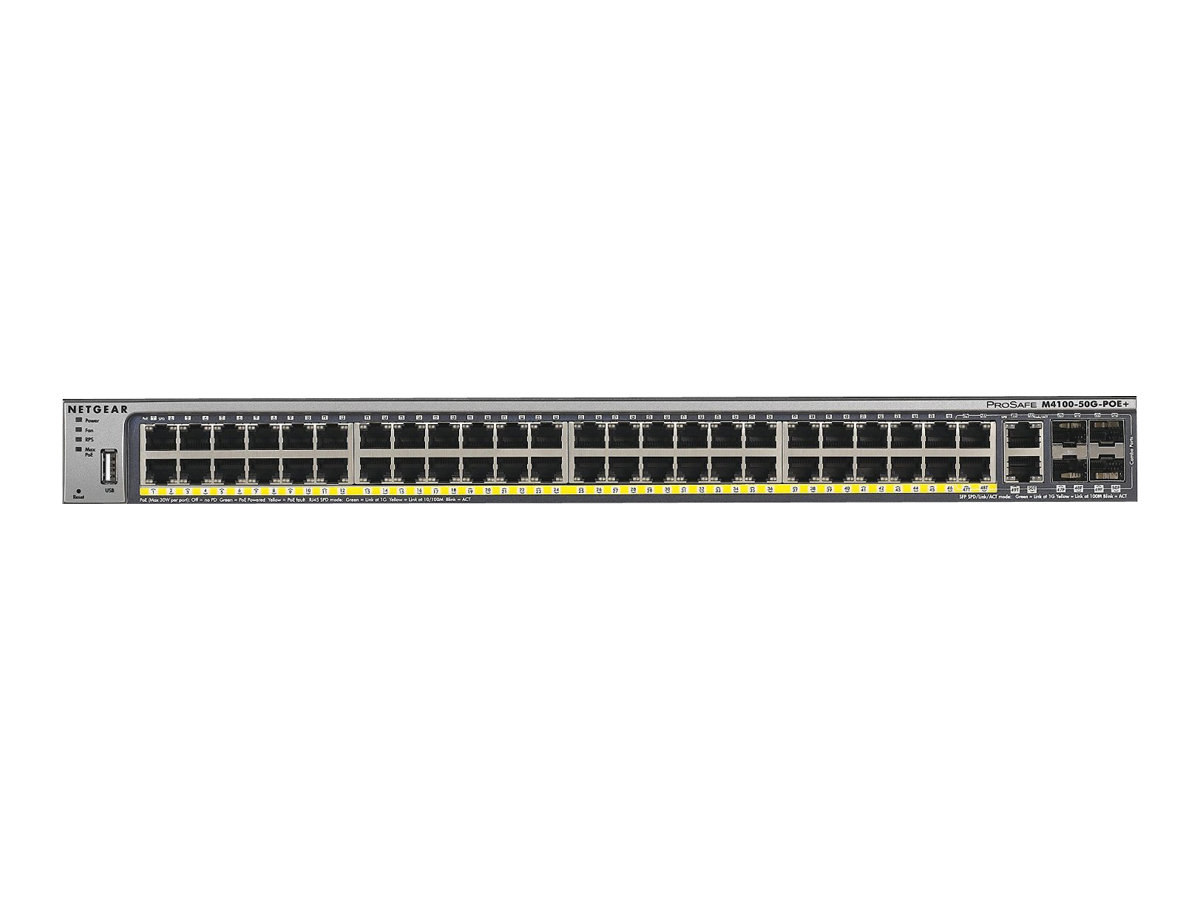

NETGEAR M4100-50G-PoE+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
NETGEAR M4100-50G-PoE+
- Switch
- L2+
- managed
- 50 x 10/100/1000 + 4 x shared SFP
- desktop, rack-mountable
- PoE+ (380 W)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GSM7248P-100NES |
| SHI Part #: | 26788297 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR M4100-50G-PoE+ - Switch - L2+ - managed - 50 x 10/100/1000 + 4 x shared SFP - desktop, rack-mountable - PoE+ (380 W) |
| Manufacturer | NETGEAR |
| MSRP | $1,114.21 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 31 cm |
| Dimensions & Weight / Height | 4.32 cm |
| Dimensions & Weight / Weight | 4.96 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 50 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | NETGEAR lifetime warranty |
| Dimensions & Weight | |
| Depth | 31 cm |
| Height | 4.32 cm |
| Weight | 4.96 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Compliant Standards | IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 50 ports - L2+ - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, store and forward, Broadcast Storm Control, IPv6 support, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, RADIUS support, MLD snooping, IPv4 support, LACP support, DHCP client, MVR, CoS |
| MAC Address Table Size | 16K entries |
| Performance | Bandwidth: 100 Gbps |
| PoE Budget | 380 W |
| Ports | 50 x 10/100/1000 + 4 x shared SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, CLI |
| Routing Protocol | Static IPv4 routing |
| Status Indicators | Port status, power, RPS (Redundant Power Supply), PoE, fan |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | NETGEAR lifetime warranty |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, cUL, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, EN50082-1, CB, CCC, FCC Part 15 A, C-Tick Class A |
| Localization | Canada, United States, Europe |
| Rack Mounting Kit | Included |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Power Consumption Operational | 555.5 watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
