Cisco ASA 5512-X Firewall Edition
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

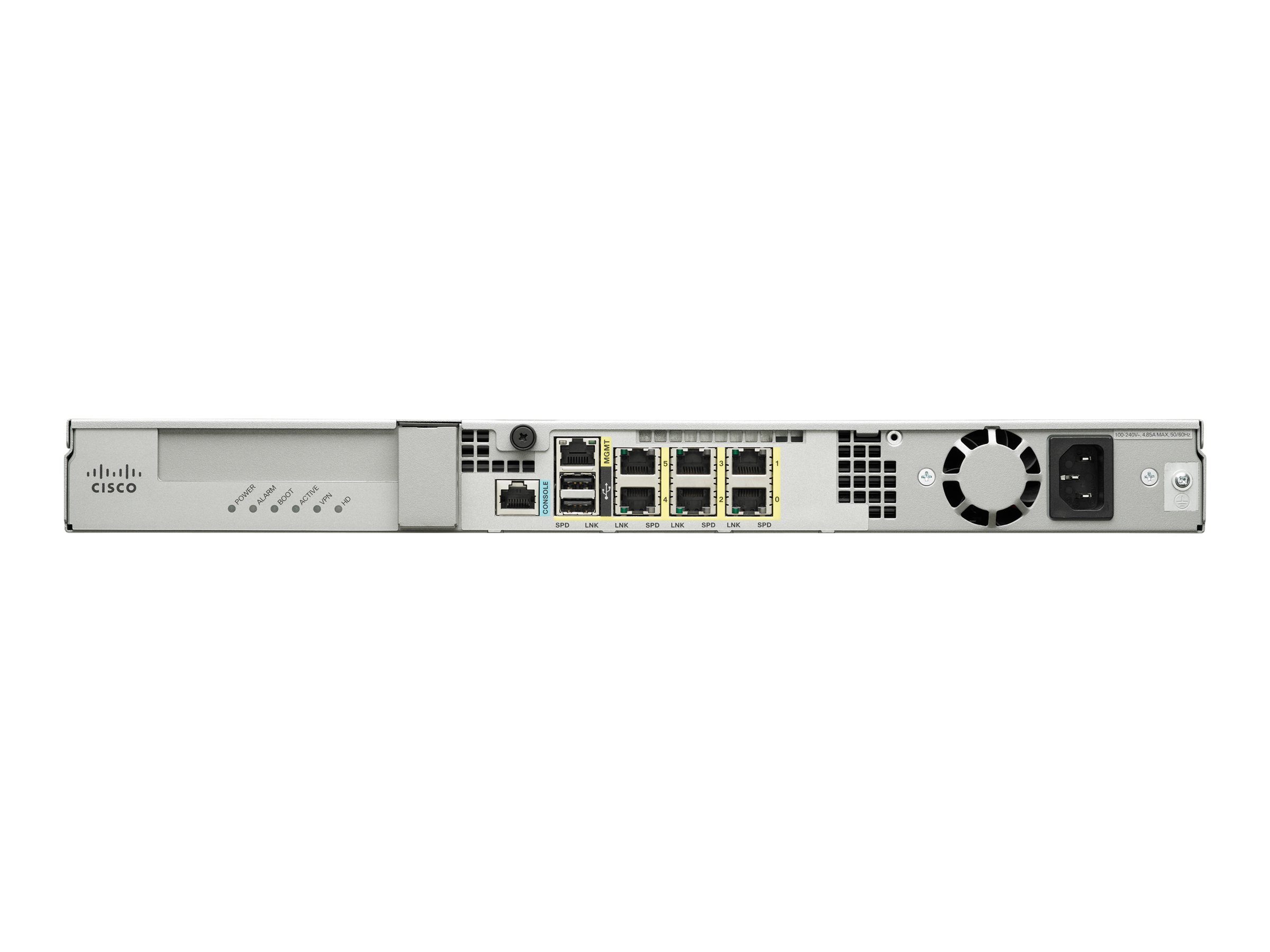

Cisco ASA 5512-X Firewall Edition
- Security appliance
- 6 ports
- 1GbE
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | ASA5512-K9 |
| SHI Part #: | 25246061 |
| Category: | Firewall appliances |
| UNSPSC: | 43222501 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Firewall appliances |
| Description | Cisco ASA 5512-X Firewall Edition - Security appliance - 6 ports - 1GbE - 1U - rack-mountable |
| Manufacturer | Cisco Systems |
| UNSPSC | 43222501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 39.5 cm |
| Dimensions & Weight / Height | 4.24 cm |
| Dimensions & Weight / Weight | 6.1 kg |
| Dimensions & Weight / Width | 42.9 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 6 |
| Networking / Type | Security appliance |
| Packaged Quantity | 1 |
| Service & Support / Type | 90-day warranty |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Depth | 39.5 cm |
| Device Type | Security appliance |
| Height | 4.24 cm |
| Height (Rack Units) | 1U |
| Weight | 6.1 kg |
| Width | 42.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Rack Mounting Kit | Included |
| Networking | |
| Capacity |
|
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Encryption Algorithm | Triple DES, AES |
| Features | Firewall protection, VPN support, VLAN support |
| Form Factor | Rack-mountable |
| Performance |
|
| Ports Qty | 6 |
| Status Indicators | Power, HDD activity, active, alarm |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Memory / Storage | |
| Flash Memory | 4 GB |
| RAM | 4 GB |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
