Hardware Computer Components Control/Interface Boards

Control/Interface Boards

Startech 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

$55.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
Parallel/serial adapter PCI Express x1 low profile RS-232 2 ports + 1 x parallel port

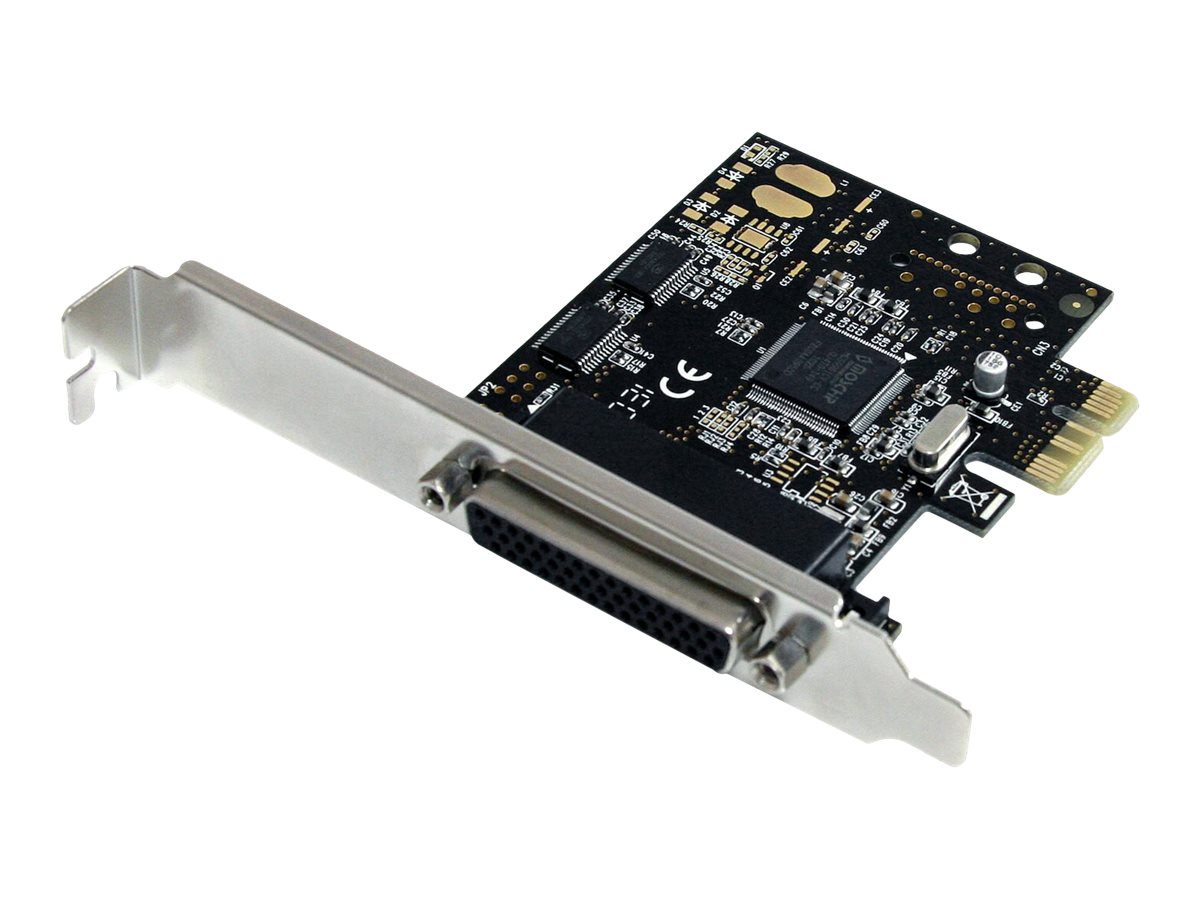

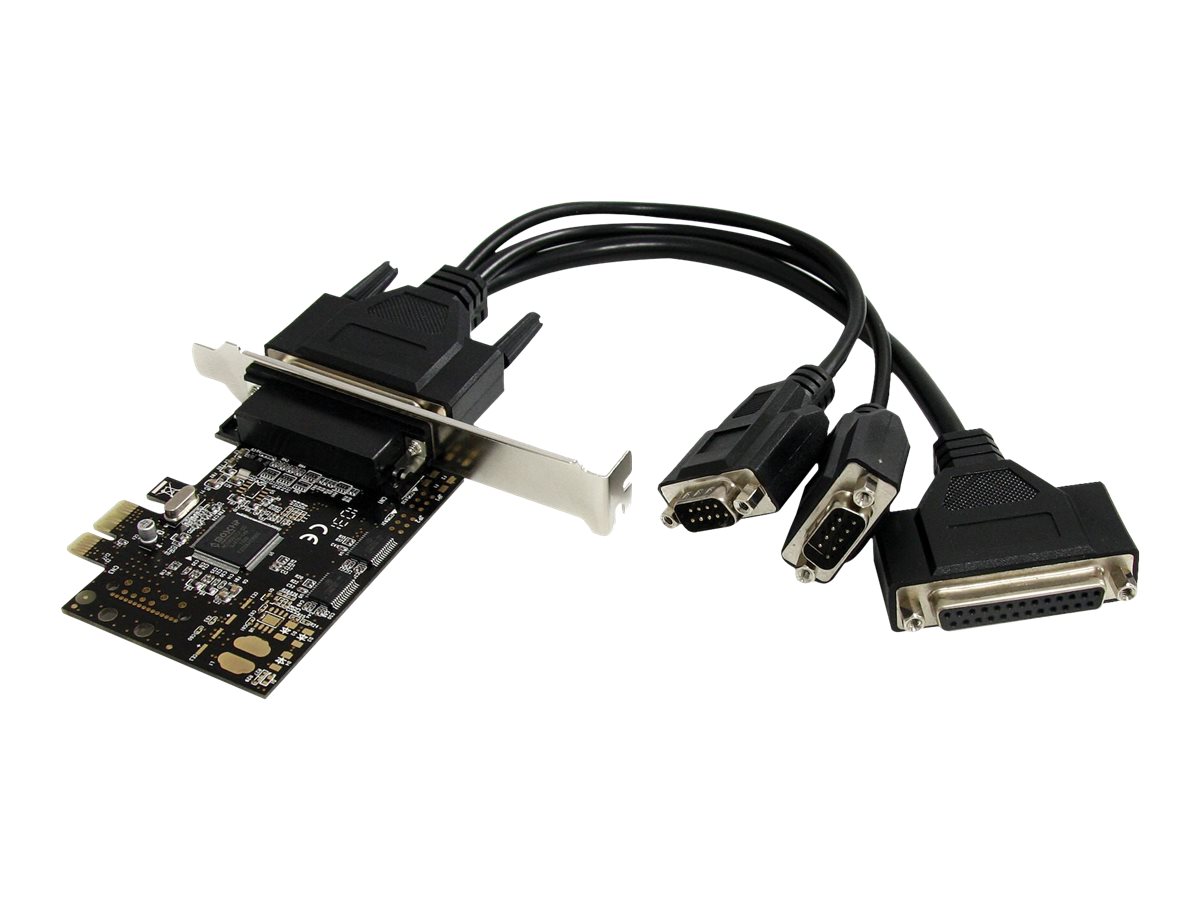

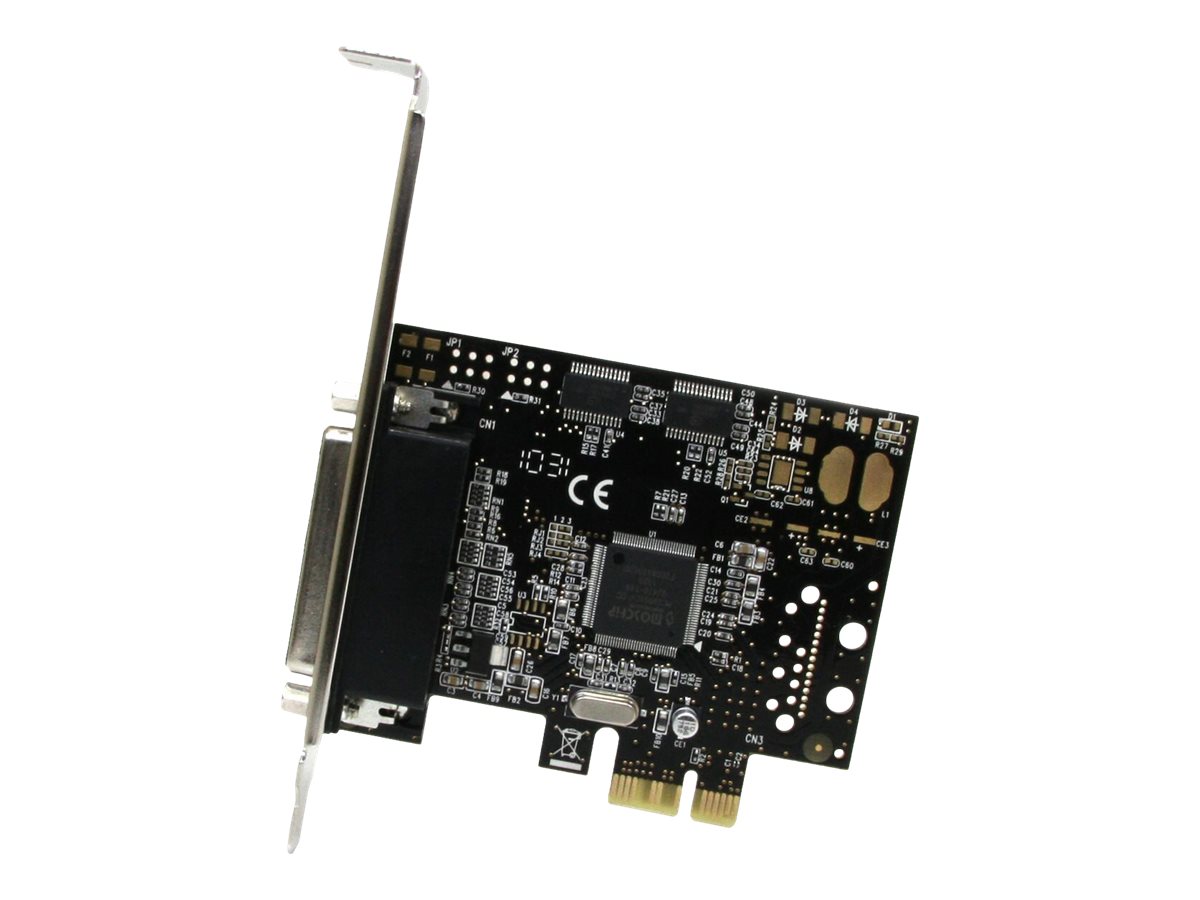

Startech 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

Parallel/serial adapter
PCI Express x1 low profile
RS-232
2 ports + 1 x parallel port

Additional Details
Price:	$55.00
Mfr Part #:	PEX2S1P553B
SHI Part #:	25241672
Category:	Serial port cards
UNSPSC:	43201559
Manufacturer:	StarTech.com
Product Type:	Hardware

Audio/Video Cables

StarTech.com 6ft Straight Through Serial Cable

DB9 M/F (MXT100)
Serial cable
DB-9 (M) to DB-9 (F)
1.8 m
for P/N: ICUSB23208FD, ICUSB232PROC, PEX1S953LP, PEX2S1050, PEX2S953LP, PEX4S953, PEX4S953LP

$10.00

StarTech 10 ft Cross Wired DB9 to DB25 Serial Null Modem Cable

F/M
Null modem cable
DB-9 (F) to DB-25 (M)
10 ft
SCNM925FM
Null modem cable

$7.00

StarTech.com 6 ft Straight Through Serial Cable

DB9 F/F
Serial cable
DB-9 (F) to DB-9 (F)
6 ft
MXT100FF
Serial cable

$9.00

General Information
Category	Serial port cards
Description	Startech 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable - Parallel/serial adapter - PCI Express x1 low profile - RS-232 - 2 ports + 1 x parallel port
Manufacturer	StarTech.com
MSRP	$46.70
UNSPSC	43201559
Main Specifications
Dimensions & Weight / Depth	9.5 cm
Dimensions & Weight / Height	7.9 cm
Dimensions & Weight / Weight	50 g
Dimensions & Weight / Width	2.3 cm
Header / Brand	Startech StarTech.com
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	RS-232
Networking / Type	Parallel/serial adapter
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
System Requirements / OS Required	Apple MacOS X 10.4 or later Linux Microsoft DOS Microsoft Windows 2000/XP/Vista/7 Microsoft Windows 95/98 Second Edition Microsoft Windows Server 2003 Microsoft Windows Server 2008 R2
Dimensions & Weight
Depth	9.5 cm
Height	7.9 cm
Weight	50 g
Width	2.3 cm
Environmental Parameters
Humidity Range Operating	5 - 85%
Max Operating Temperature	70 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Compatible Slots	1 x PCI Express x1 - low-profile

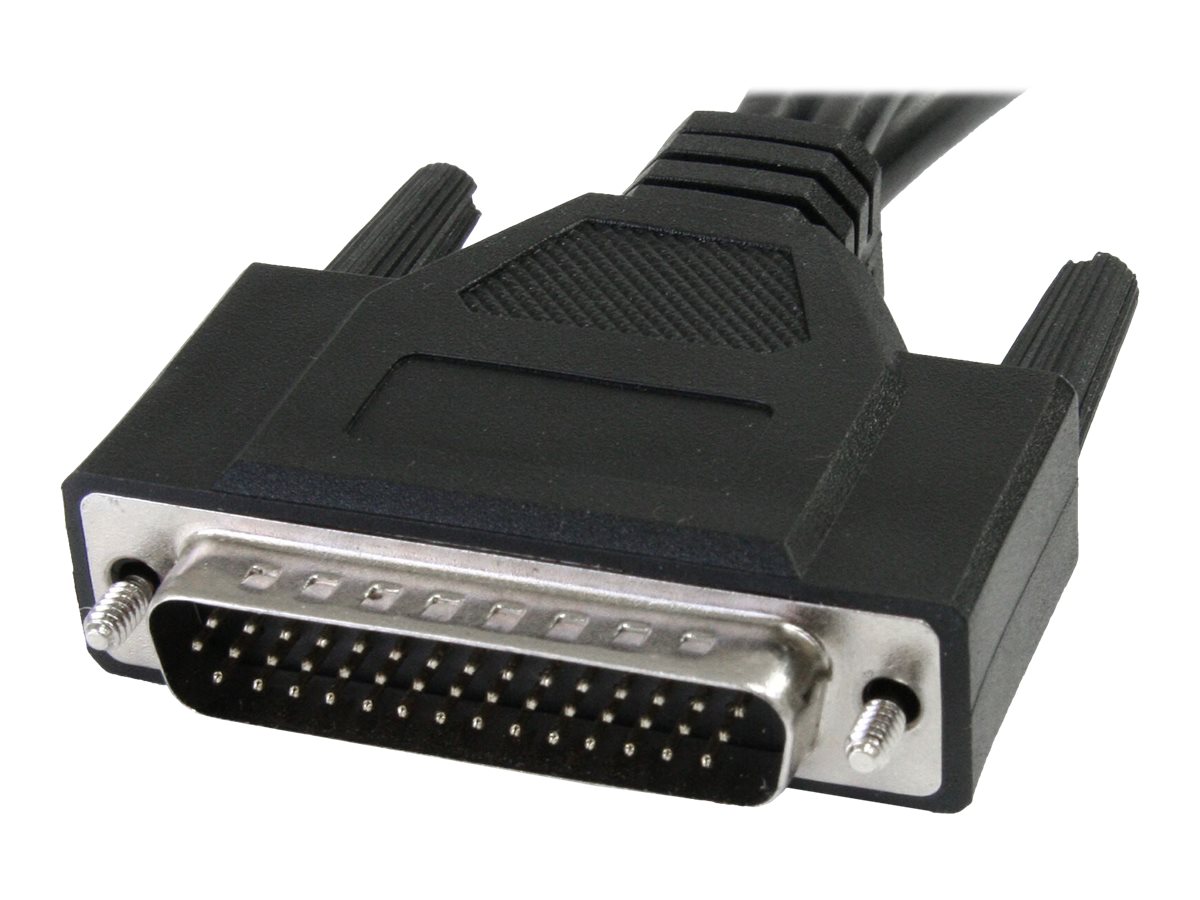

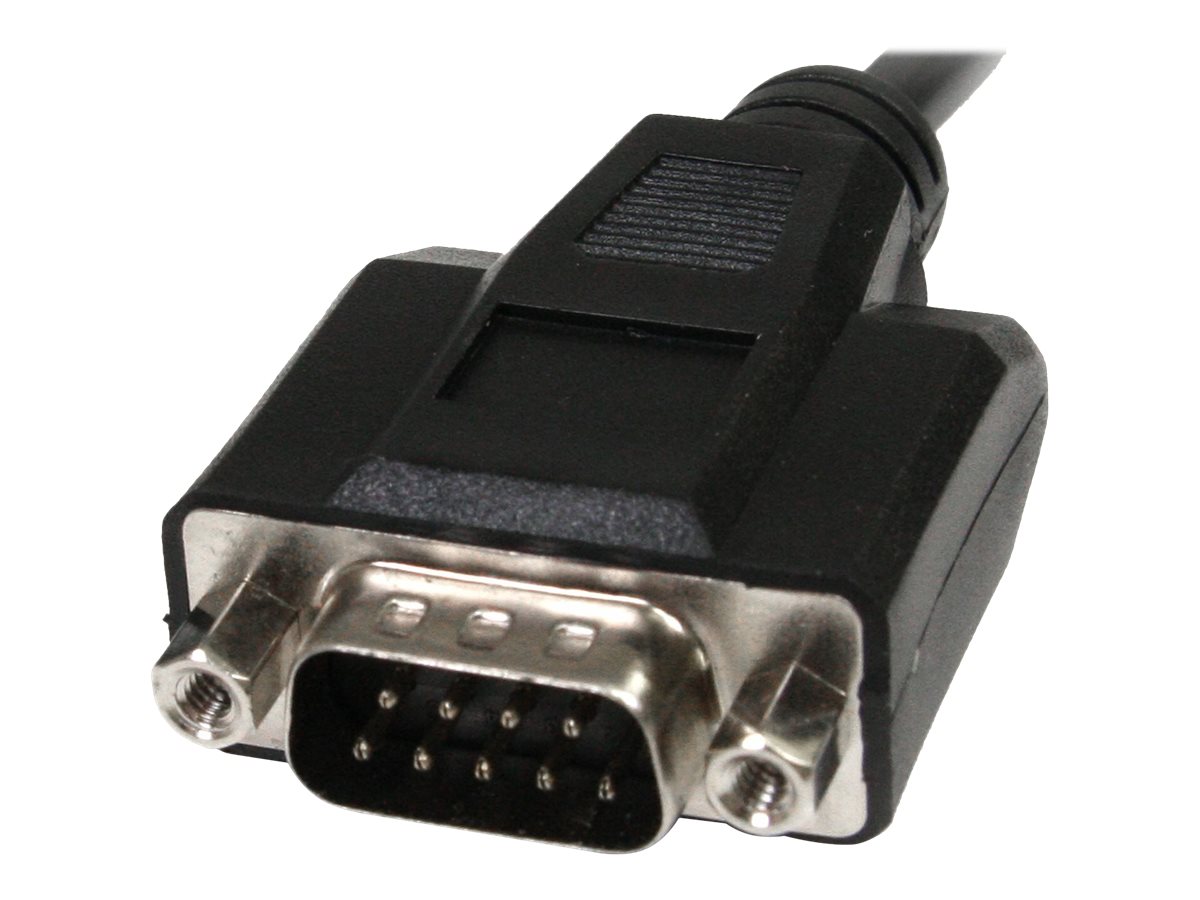

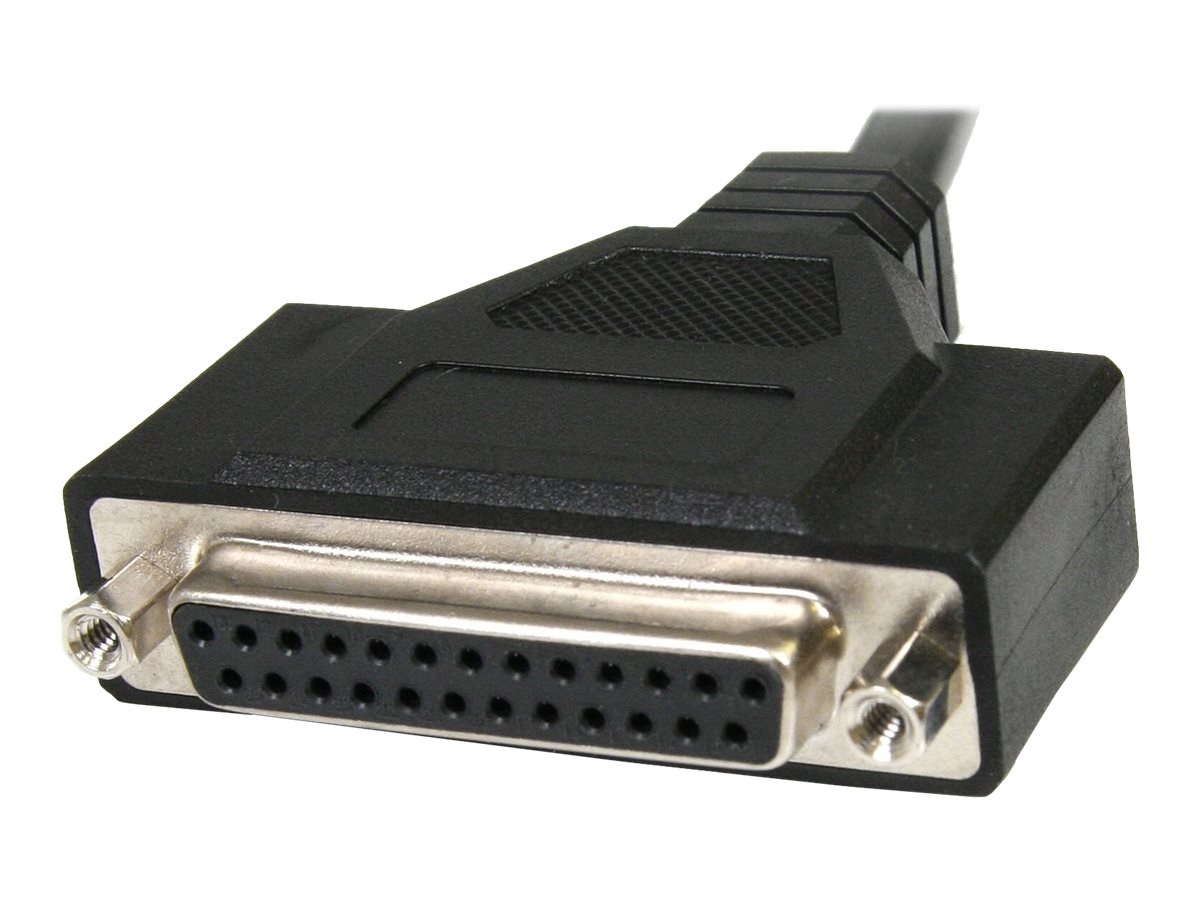

Interfaces	1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) (on cable) 2 x RS-232 - 9 pin D-Sub (DB-9) (on cable)
General
Device Type	Parallel/serial adapter - 2 ports
Form Factor	Plug-in card - low profile
Interface (Bus) Type	PCI Express x1
Manufacturer Warranty
Service & Support	Limited warranty - lifetime
Miscellaneous

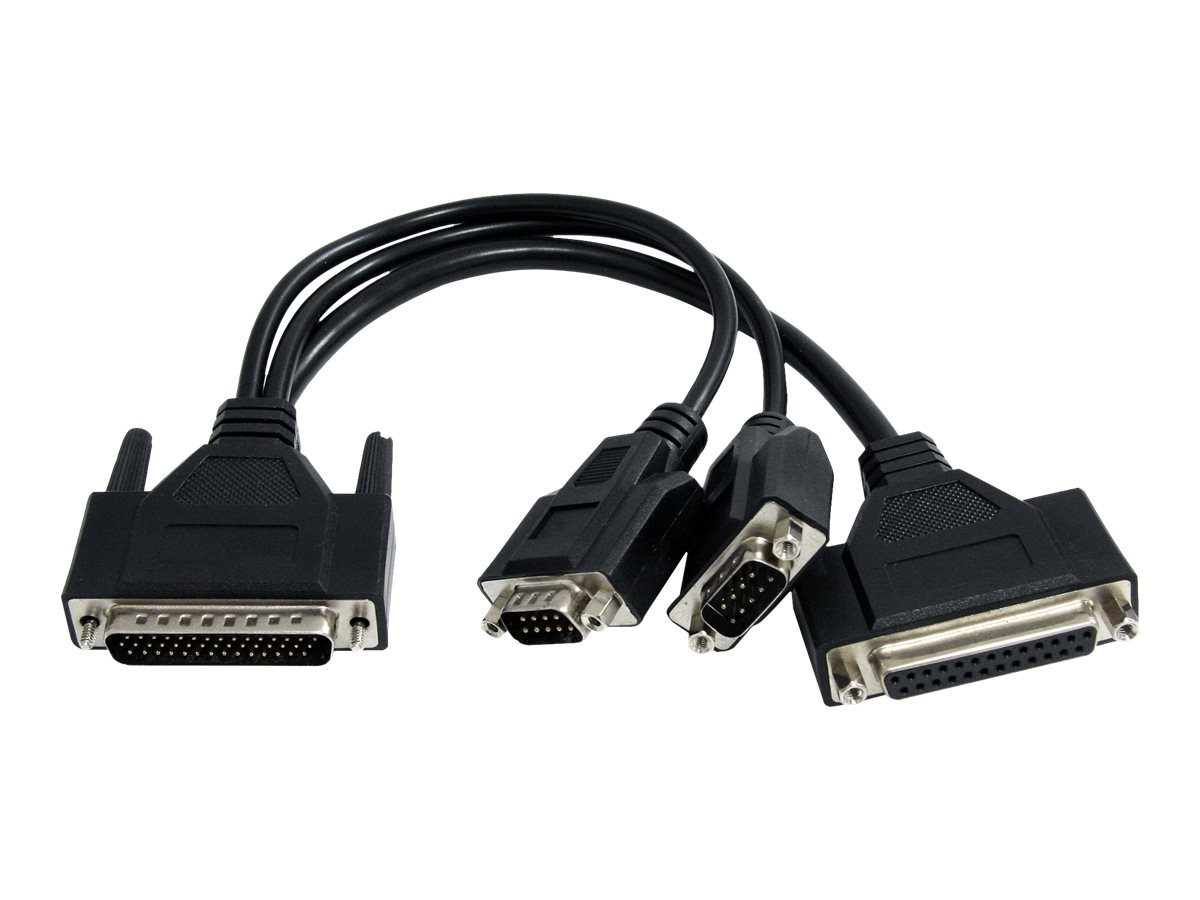

Cables Included	1 x serial / parallel cable (external)
Compliant Standards	WHQL, RoHS

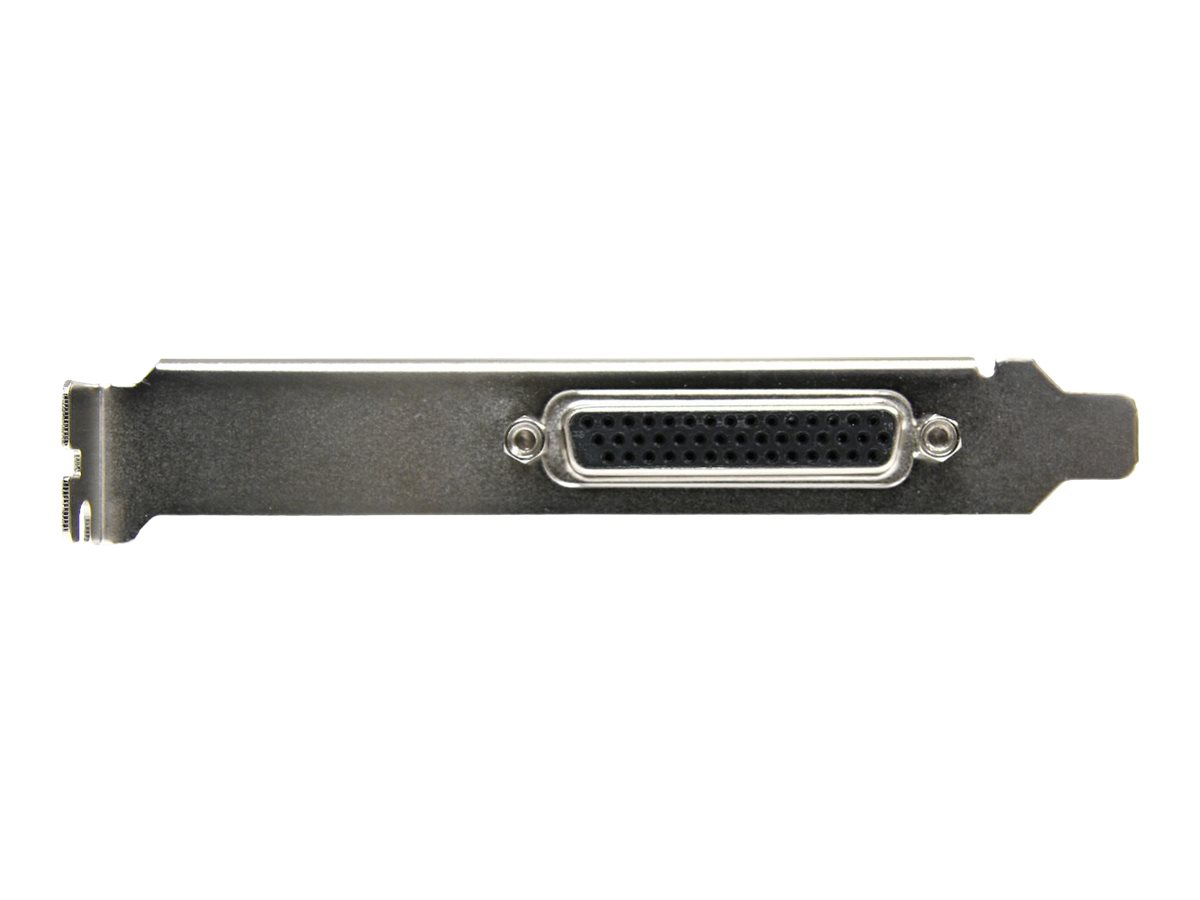

Included Accessories	Full-height bracket
Networking
Auxiliary Ports	1 x parallel port
Connectivity Technology	Wired
Data Link Protocol	RS-232
Software / System Requirements
OS Required	Microsoft DOS, Linux, Microsoft Windows 95/98 Second Edition, Microsoft Windows Server 2003, Apple MacOS X 10.4 or later, Microsoft Windows Server 2008 R2, Microsoft Windows 2000/XP/Vista/7
