Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

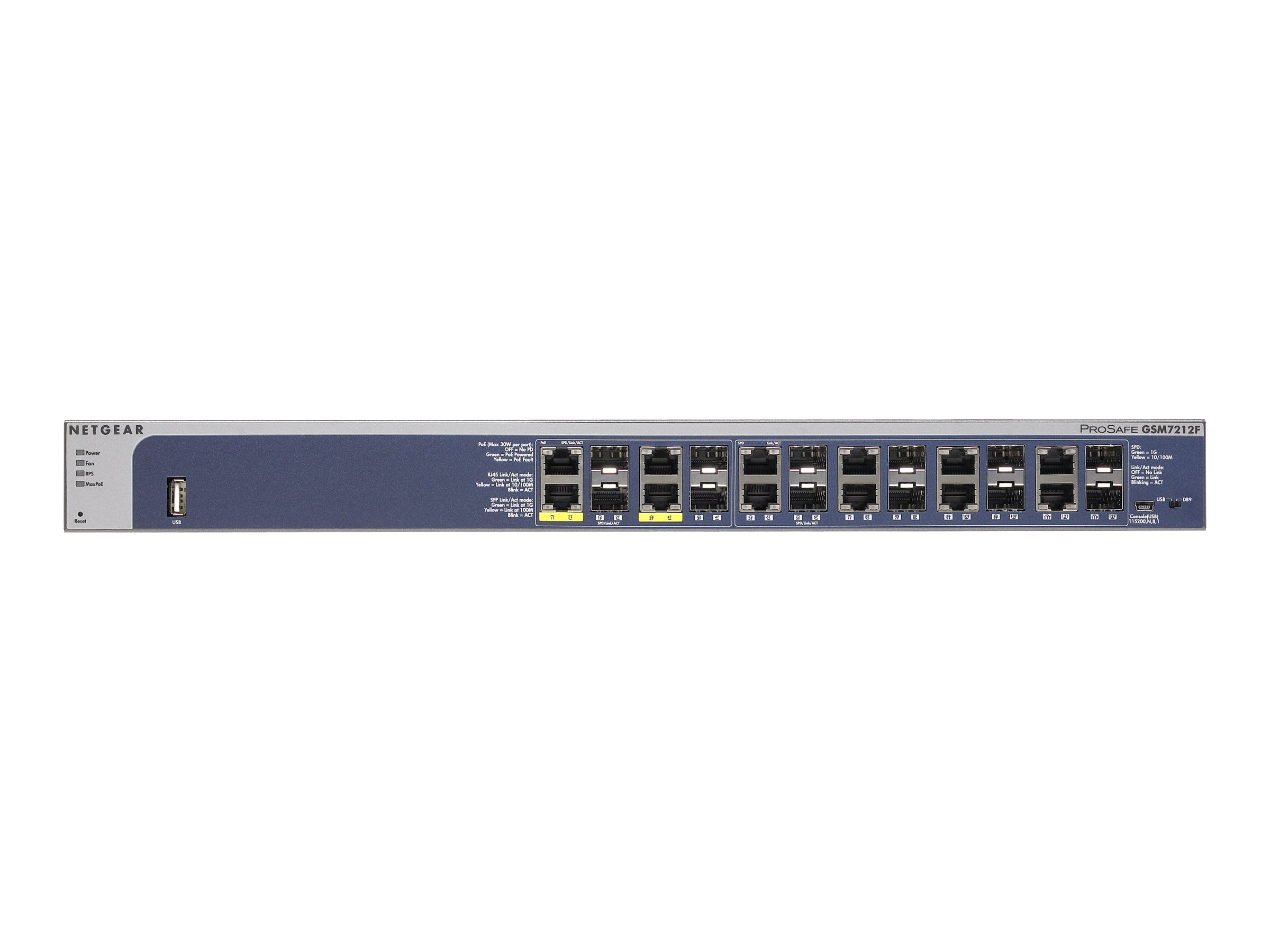

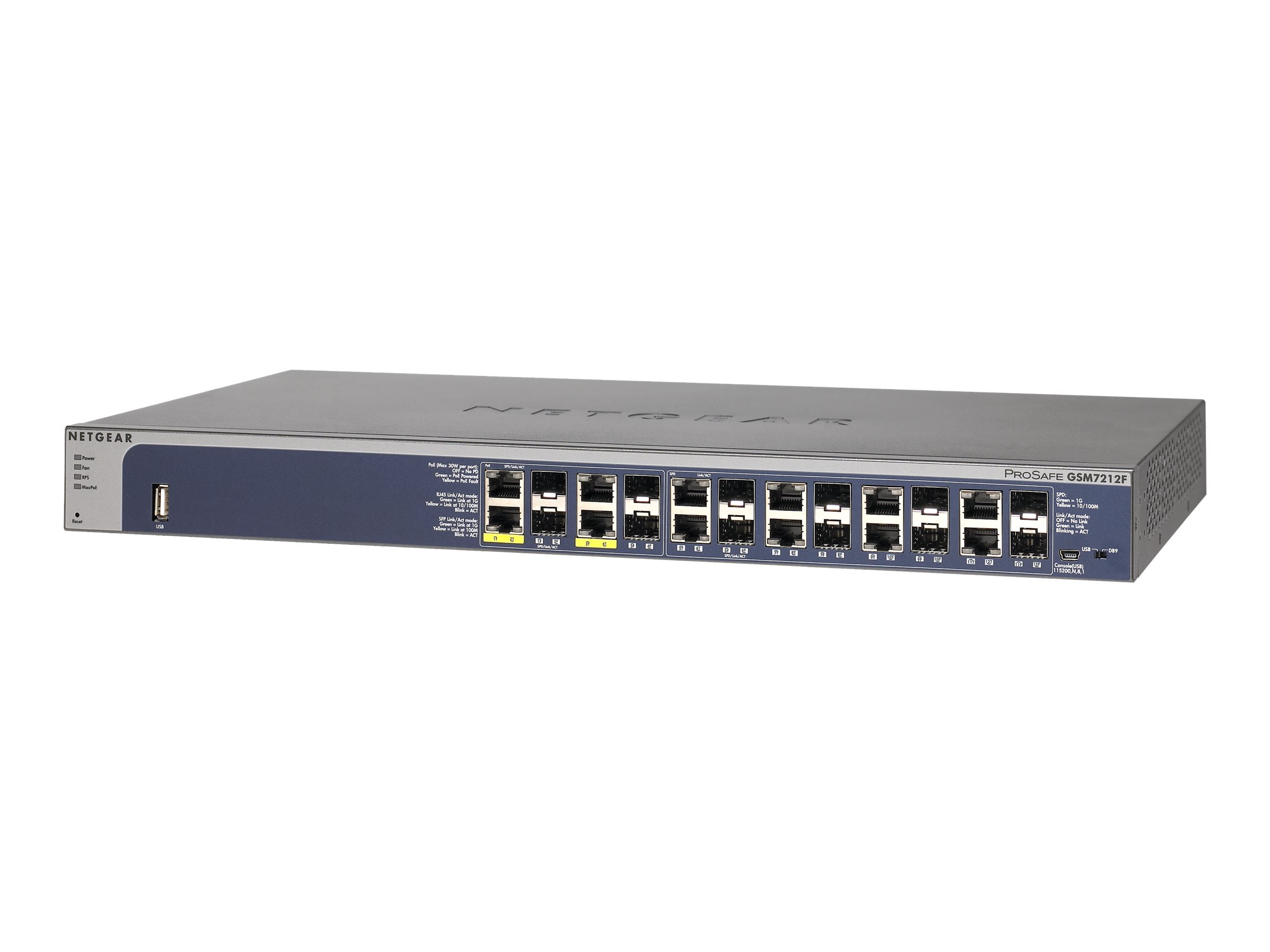

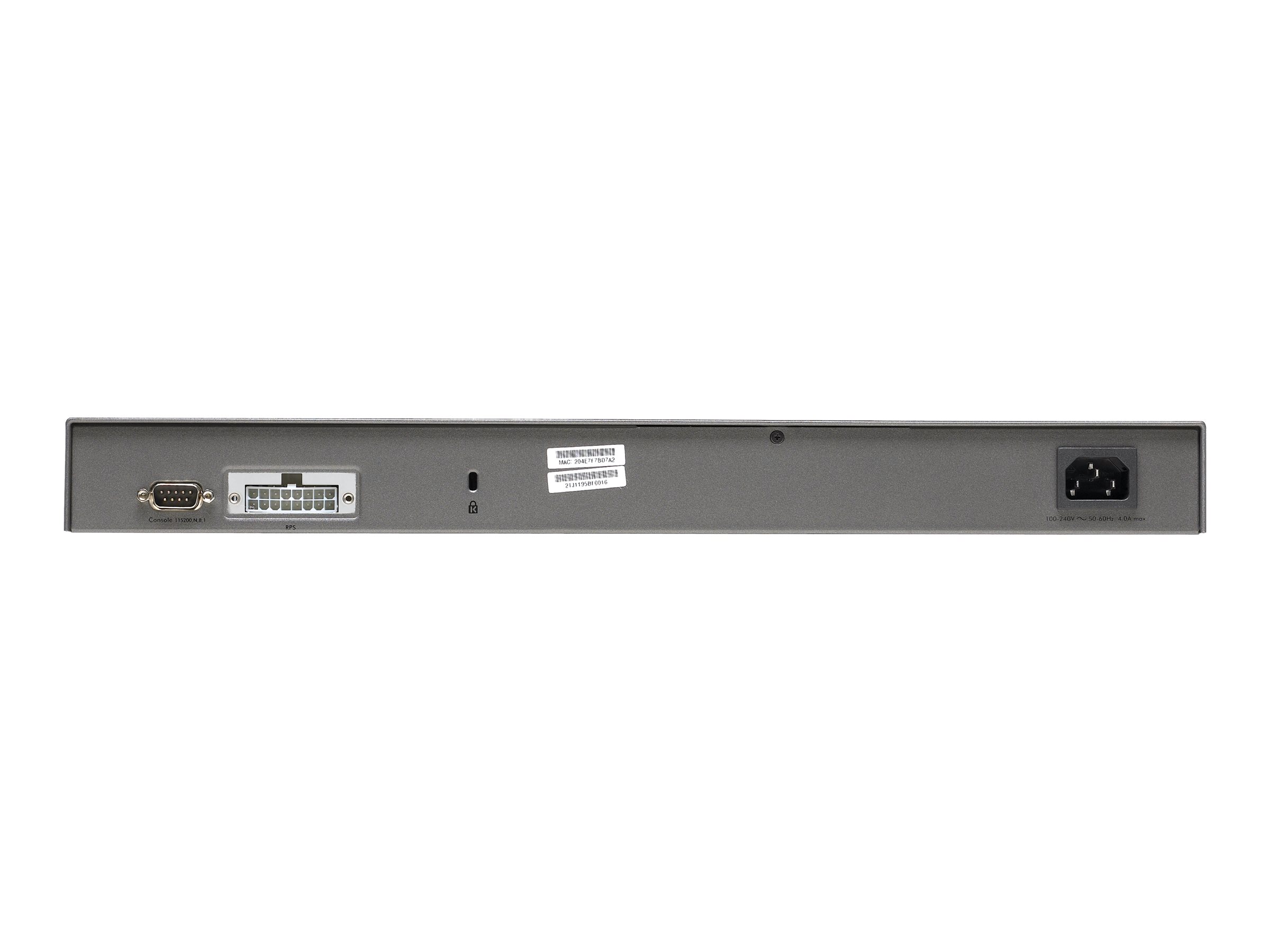

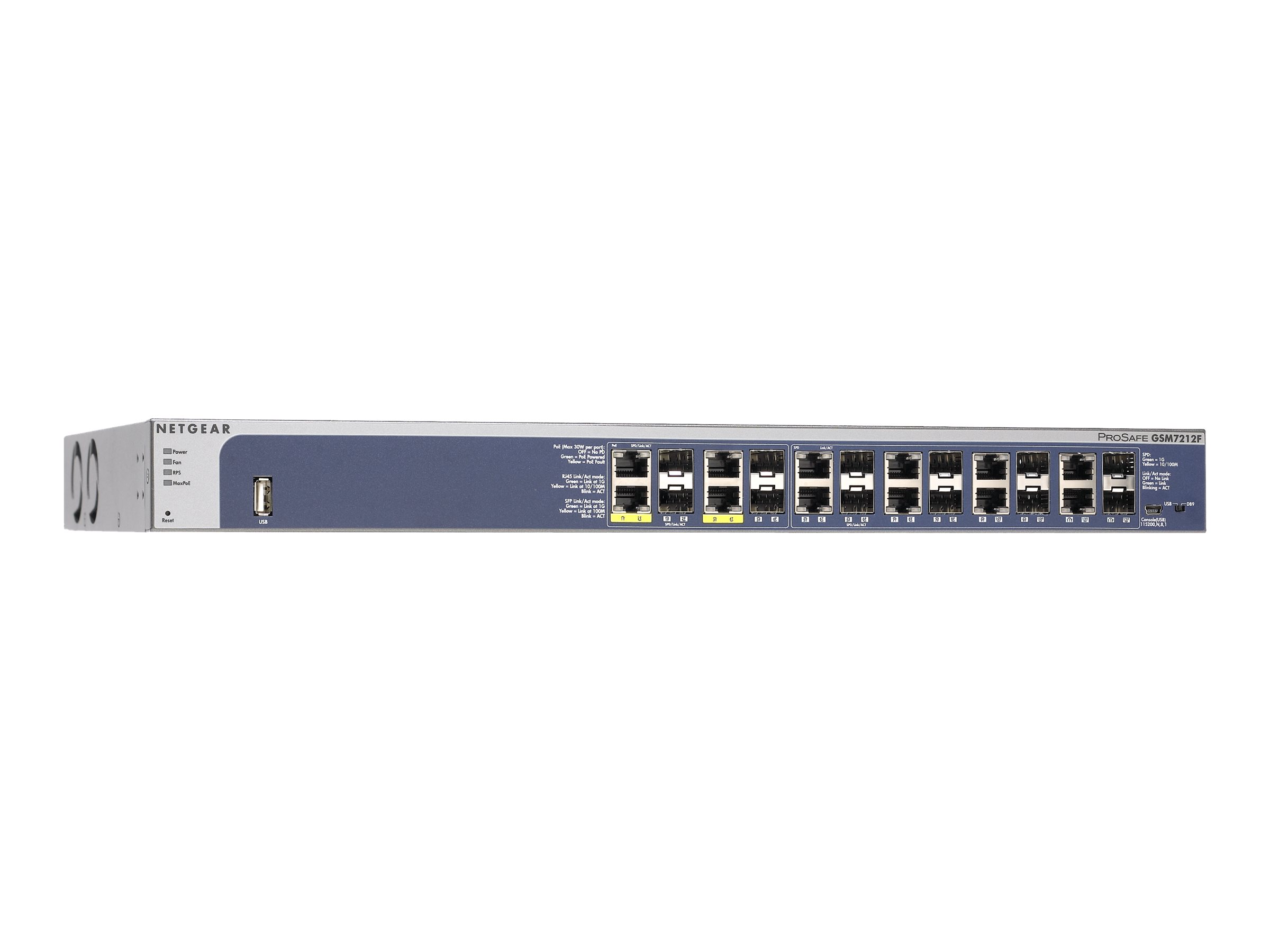

NETGEAR M4100-12GF - Switch

$1,172.00
NETGEAR M4100-12GF - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • L2+
  • managed
  • 12 x combo Gigabit SFP + 4 x 10/100/1000
  • desktop, rack-mountable
  • PoE
NETGEAR M4100-12GF - Switch
  • L2+
  • managed
  • 12 x combo Gigabit SFP + 4 x 10/100/1000
  • desktop, rack-mountable
  • PoE
  Additional Details
Price: $1,172.00
Mfr Part #: GSM7212F-100NES
SHI Part #: 25031434
Category: Network switches
UNSPSC: 43222612
Manufacturer: NETGEAR
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionNETGEAR M4100-12GF - Switch - L2+ - managed - 12 x combo Gigabit SFP + 4 x 10/100/1000 - desktop, rack-mountable - PoE
ManufacturerNETGEAR
MSRP$977.10
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth20.5 cm
Dimensions & Weight / Height4.3 cm
Dimensions & Weight / Weight3.7 kg
Dimensions & Weight / Width44 cm
Header / BrandNETGEAR
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / Ports Qty12
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth20.5 cm
Height4.3 cm
Weight3.7 kg
Width44 cm
Expansion / Connectivity
Interfaces
  • 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 PoE
  • 1 x RS-232 - 9 pin D-Sub (DB-9) management
  • 1 x USB
  • 12 x SFP (mini-GBIC)
  • 12 x 1000Base-T RJ-45
General
Authentication MethodRADIUS, TACACS+
Compliant StandardsIEEE 802.3af, IEEE 802.1x, IEEE 801.1p
Device TypeSwitch - 12 ports - L2+ - managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
FeaturesVLAN support, DiffServ support, IPv6 support, STP support, RSTP support, MSTP support, QoS, Jumbo Frames support, DHCP server, PoE+, IPv4 support, LACP, DHCP client
Jumbo Frame SupportYes
MAC Address Table Size8K entries
Max Units In A Stack8
Performance
  • Switching capacity: 24 Gbps
  • Throughput: 17.8 Mpps
Ports12 x combo Gigabit SFP + 4 x 10/100/1000
Power Over Ethernet (PoE)PoE
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Routing ProtocolStatic IP routing
SubtypeGigabit Ethernet
Miscellaneous
MTBF239,032 hours
Power
Power Consumption Operational38.5 watt
Power DeviceInternal power supply
