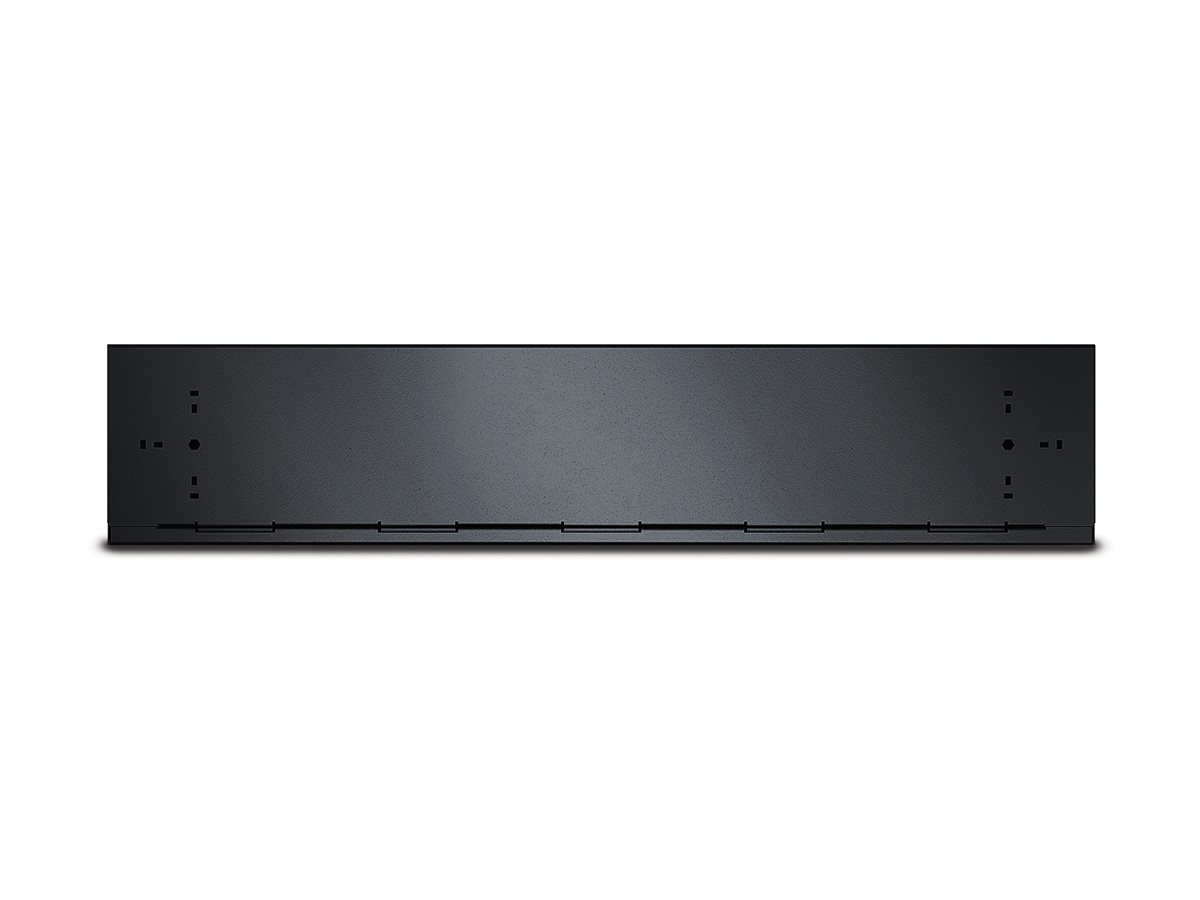

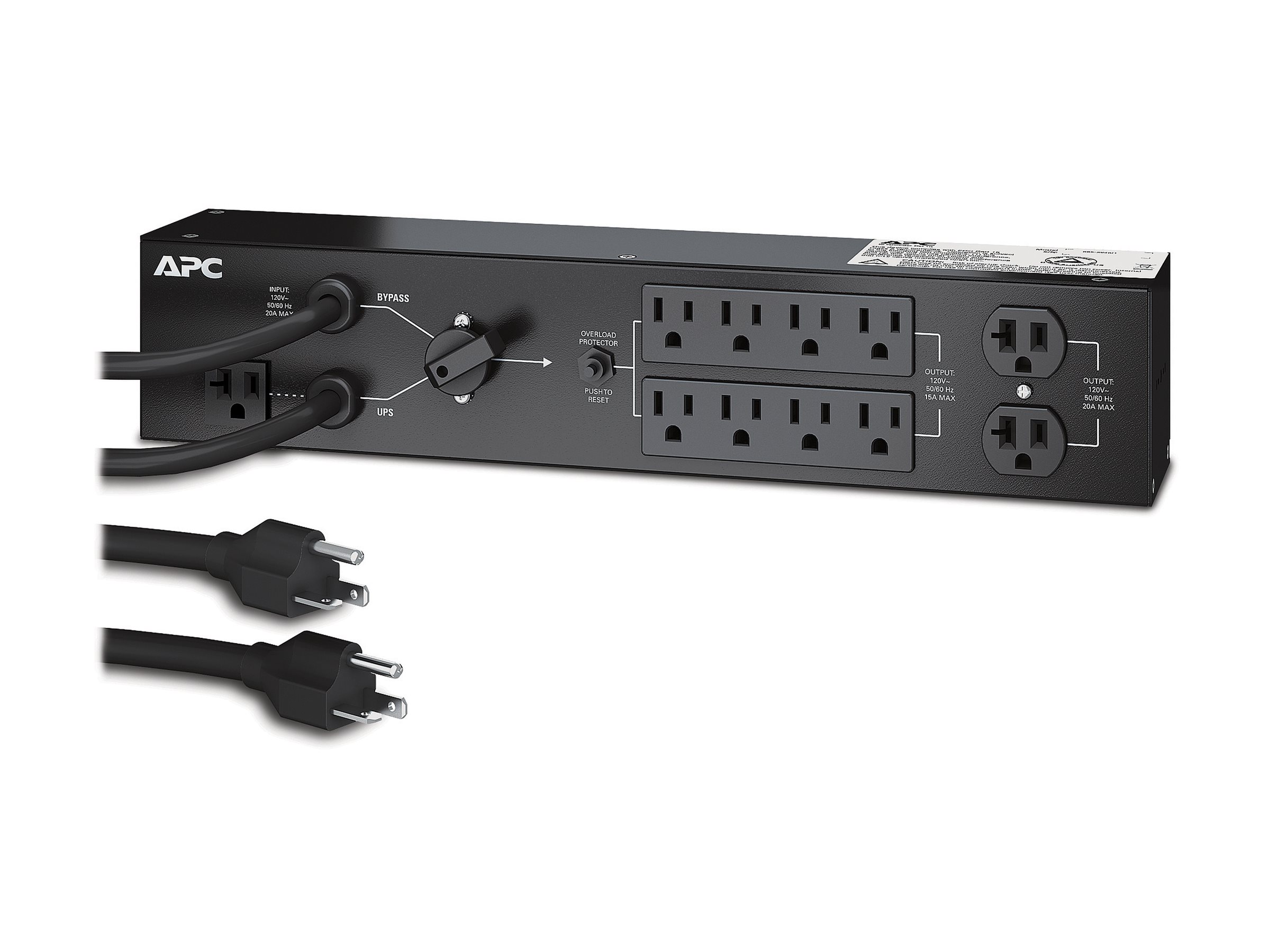

APC Service Bypass Panel
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Service Bypass Panel
- Power distribution unit (rack-mountable)
- AC 120 V
- 2200 VA
- input: NEMA 5-20
- output connectors: 10
- 2.4 m cord
- black
- for P/N: SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UNCX145, SMX2KR2UX145, SRTL2K2RM1UC, SRTL2K2RM1UNC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SBP2200RM |
| SHI Part #: | 24420435 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC Service Bypass Panel - Power distribution unit (rack-mountable) - AC 120 V - 2200 VA - input: NEMA 5-20 - output connectors: 10 - 2.4 m cord - black - for P/N: SMX2000LVUS, SMX2200RMLVUS, SMX2KR2UNCX145, SMX2KR2UX145, SRTL2K2RM1UC, SRTL2K2RM1UNC |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.6 cm |
| Dimensions & Weight / Height | 8.9 cm |
| Dimensions & Weight / Weight | 3 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 10 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 2-year warranty |
| Compatibility Information | |
| Designed For | P/N: SMT2200, SMT2200C, SMT2200J, SMT2200R2X106, SMT2200R2X180, SMT2200R2X658, SMT2200RM2U, SMT2200RM2UC, SMT2200RM2UNC, SMT2200RM2UTW, SMT2200RMUS, SMT2200TW, SMT2200US, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2000RMLV2U, SMX2000RMLV2UNC, SMX2200RMLVUS, SMX2KR2UNCX145, SMX2KR2UX145, SMX2KRMLVNCUS, SRTL2K2RM1UC, SRTL2K2RM1UNC, SUA2200, SUA2200R3XLNETPKG, SUA2200RM2U, SUA2200RM2UTW, SUA2200RMI2U, SUA2200RMXL3U, SUA2200TW, SUA2200XL, SUA2200XLI, SUA2200XL-NETPKG |
| Dimensions & Weight | |
| Depth | 7.6 cm |
| Height | 8.9 cm |
| Weight | 3 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 29.5 cm |
| Shipping Height | 15.1 cm |
| Shipping Weight | 3.8 kg |
| Shipping Width | 46.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Black |
| Cord Length | 2.4 m |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 2.4 m |
| Compliant Standards | TUV, RoHS Exemption 7b, REACH |
| Features | Built-in bypass switch, overload protection |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA 5-20 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 125 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 2200 VA |
| Power Output Connectors Details |
|
