5PX UPS 5PX 2200VA 208/230V RACK / TOWER 2U NCNR
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

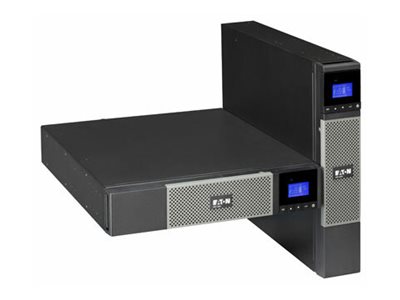

5PX UPS 5PX 2200VA 208/230V RACK / TOWER 2U NCNR
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 5PX2200IRT |
| SHI Part #: | 22788618 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | 5PX UPS 5PX 2200VA 208/230V RACK / TOWER 2U NCNR |
| Manufacturer | Eaton |
| MSRP | $4,029.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 52.2 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 28.5 kg |
| Dimensions & Weight / Width | 44.1 cm |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 9 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 230 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 52.2 cm |
| Height | 8.6 cm |
| Weight | 28.5 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Plug-in module |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | TUV, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2 |
| Features | Advance Battery Management (ABM) |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 47 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 160 - 294 V |
| Input Voltage Range (Adjustable) | AC 150 - 294 V |
| Output Voltage | AC 200/208/220/230/240 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1980 watt / 2200 VA |
| Power Output Connectors Details |
|
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
