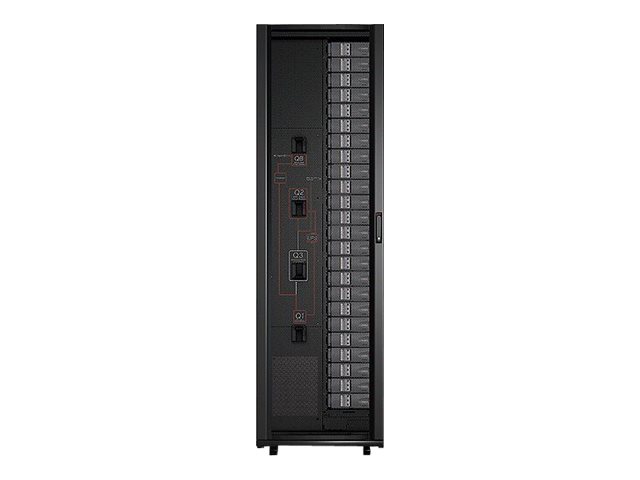

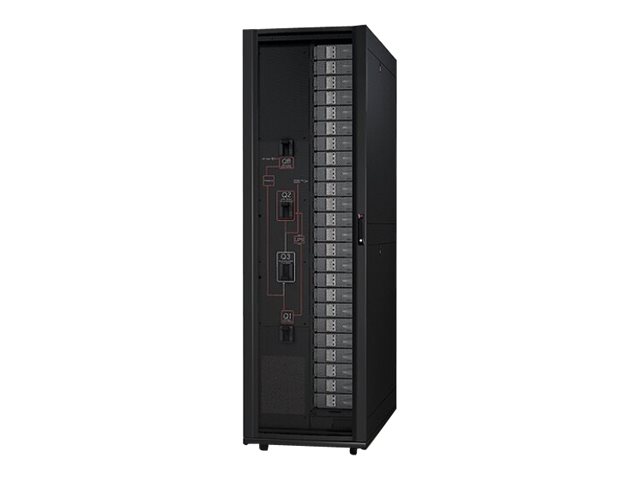

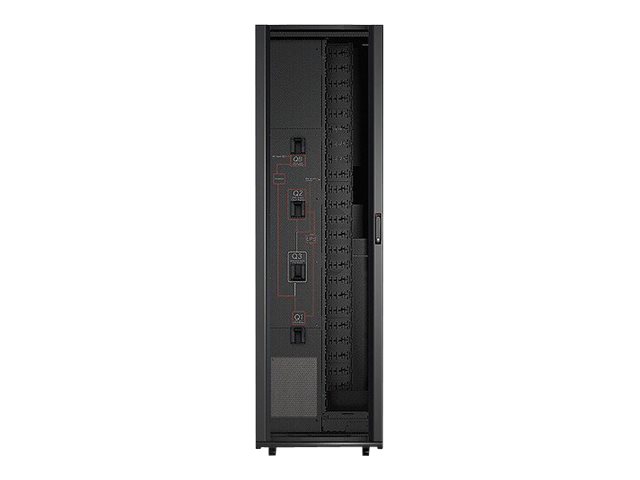

APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed
- Power distribution cabinet
- AC 600 V
- 100 kW
- 100000 VA
- 3-phase
- output connectors: 1
- black
- for P/N: SY40K100F-NB, SY50K100F-NB, SY60K100F-NB, SY70K100F-NB, SY80K100F-NB, SY90K100F-NB
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDPM100L6F-M |
| SHI Part #: | 22673111 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | APC Modular Power Distribution Unit with 72 Poles and 1 Subfeed - Power distribution cabinet - AC 600 V - 100 kW - 100000 VA - 3-phase - output connectors: 1 - black - for P/N: SY40K100F-NB, SY50K100F-NB, SY60K100F-NB, SY70K100F-NB, SY80K100F-NB, SY90K100F-NB |
| Manufacturer | APC by Schneider Electric |
| MSRP | $43,500.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 107 cm |
| Dimensions & Weight / Height | 200 cm |
| Dimensions & Weight / Weight | 818 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | Cabinets, enclosures and chassis |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 1 |
| Power Device / Power Capacity (VA) | 100000 VA |
| Power Device / Voltage Required | AC 600 V |
| Product Type | Power distribution cabinet |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | P/N: PDPM150G6F, PDPM150L6F, SY100K100F, SY100K100F-NB, SY10K100F, SY10K100F-NB, SY20K100F, SY20K100F-NB, SY30K100F, SY30K100F-NB, SY40K100F, SY40K100F-NB, SY50K100F, SY50K100F-NB, SY60K100F, SY60K100F-NB, SY70K100F, SY70K100F-NB, SY80K100F, SY80K100F-NB, SY90K100F, SY90K100F-NB |
| Dimensions & Weight | |
| Depth | 107 cm |
| Height | 200 cm |
| Weight | 818 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 122 cm |
| Shipping Height | 215 cm |
| Shipping Weight | 864 kg |
| Shipping Width | 102 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Color | Black |
| Device Type | Power distribution cabinet - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Part 15 B, RoHS Exemption 7b, UL 60950-1, CSA C22.2 No. 60950-1-03, REACH |
| Features | Built-in maintenance bypass, built-in isolation transformer |
| Power Device | |
| Frequency Required | 60 Hz |
| Input Connectors | Hardwire 4-wire (3PH + G) |
| Input Voltage | AC 600 V |
| Input Wiring | 3-phase |
| Output Voltage | AC 208 V |
| Power Capacity | 100 kW / 100000 VA |
| Power Output Connectors Details | 1 x hardwire 4-wire (3PH + N) |
