RACKBAR RM 18OUT NEMA 5-15R NEED FREIGHTQUOTE FOR BELOW 10K PO
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

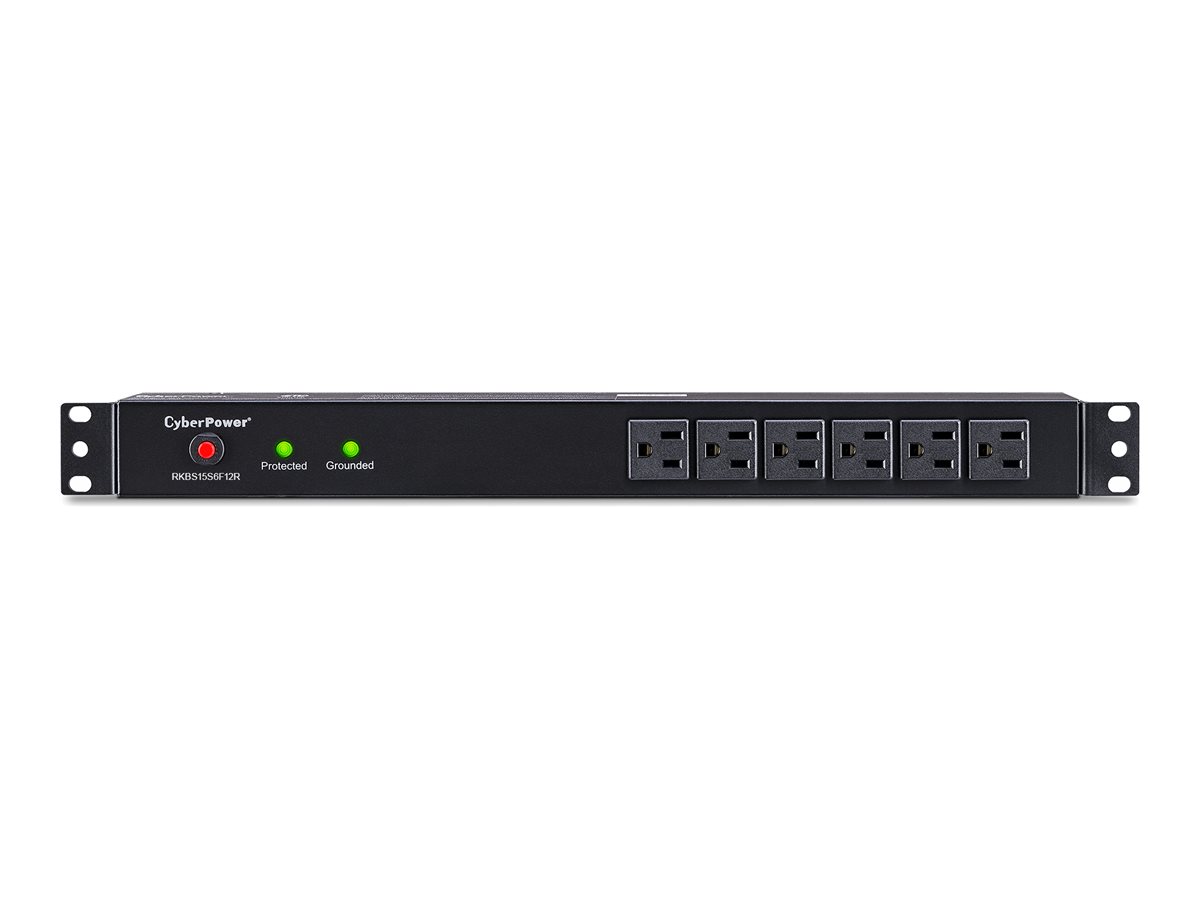

RACKBAR RM 18OUT NEMA 5-15R NEED FREIGHTQUOTE FOR BELOW 10K PO
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | RKBS15S6F12R |
| SHI Part #: | 22604067 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | RACKBAR RM 18OUT NEMA 5-15R NEED FREIGHTQUOTE FOR BELOW 10K PO |
| Manufacturer | CyberPower |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 44.5 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 4.4 cm |
| Header / Brand | Cyberpower |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 18 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Surge protector |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 44.5 cm |
| Weight | 1.9 kg |
| Width | 4.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Surge protector - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | Power cable 4.6 m |
| Compliant Standards | UL 1363, UL 1449, CSA C22.2, RoHS, ETL |
| Equipment Protection Value | 150000 US Dollars |
| Features | Rear connectivity, front connectivity, rugged, overload protection, vertical orientation |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Clamping Level | 400 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Voltage | AC 120 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 120 V 50/60 Hz |
| Power Output Connectors Details | 18 x power NEMA 5-15 |
| Surge Energy Rating | 3600 Joules |
| Surge Response Time | 1 ns |
| Surge Suppression | Yes |
