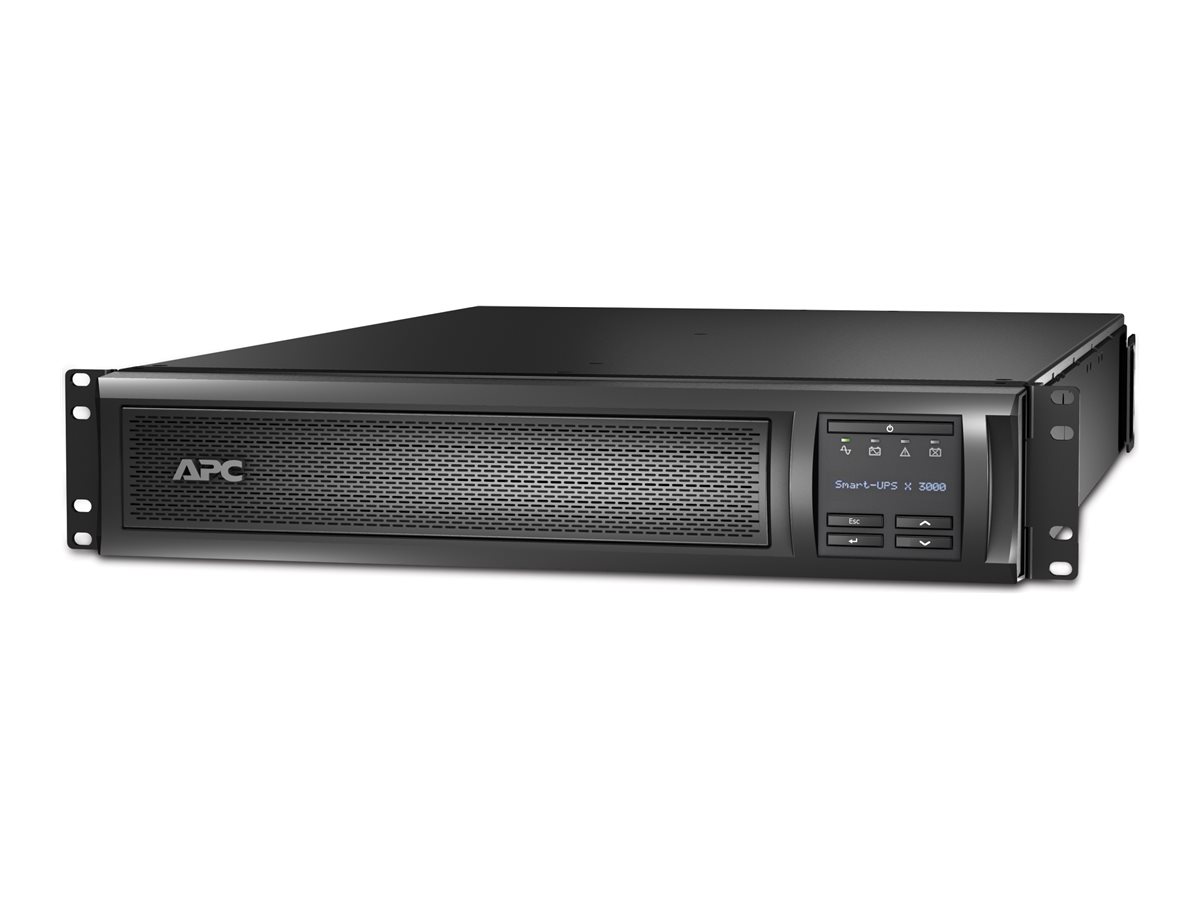

APC Smart-UPS X 3000 Rack/Tower LCD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Smart-UPS X 3000 Rack/Tower LCD
- UPS
- AC 120 V
- 2.7 kW
- 3000 VA
- RS-232, USB
- output connectors: 7
- 2U
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SMX3000RMLV2U |
| SHI Part #: | 22492864 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
Audio/Video Cables
- Network adapter kit
- black
- for P/N: SMT1000RM1U, SRTL10KRM4UT, SRTL5KRM2UI-HW, SRTL5KRM2UT-HW, SRTL8KRM4UT
- 120 V
- 1.22 m
- black
- for P/N: SMX3000HV-BR, SMX3000LV2U-BR, SMX3000RMJ2U
Control/Interface Boards
- Remote management adapter
- SmartSlot
- USB, serial
- black
- for Smart-UPS 1000, 750; Smart-UPS RT 10000VA, 3000, 5000; Smart-UPS X 1000, 1500
- KVM extender
- TAA Compliant
- for P/N: AR3103, AR3103SP, AR3106SP, AR9300SP, SRT1000RMXLI, SRT10RMXLIX806, SRT5KRMXLW-TW
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS X 3000 Rack/Tower LCD - UPS - AC 120 V - 2.7 kW - 3000 VA - RS-232, USB - output connectors: 7 - 2U - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,750.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 66.7 cm |
| Dimensions & Weight / Height | 8.5 cm |
| Dimensions & Weight / Weight | 38.5 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 66.7 cm |
| Height | 8.5 cm |
| Weight | 38.5 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 86.9 cm |
| Shipping Height | 24.3 cm |
| Shipping Weight | 45.4 kg |
| Shipping Width | 59.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, TUV, VCCI, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS Exemption 7b, FCC Part 15 A, REACH |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display, LED indicators |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-30 |
| Input Voltage | AC 120 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2.7 kW / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 540 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
