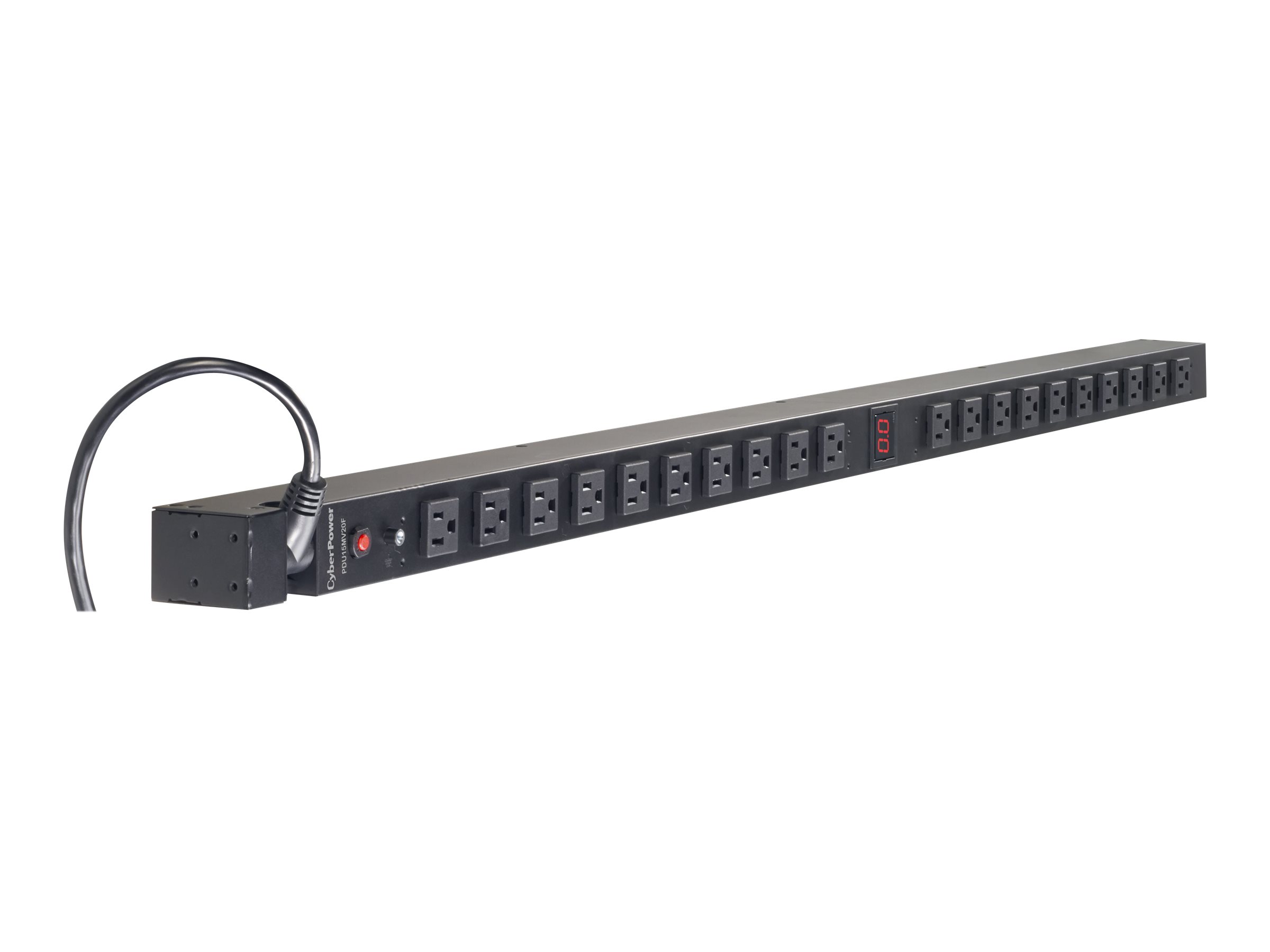

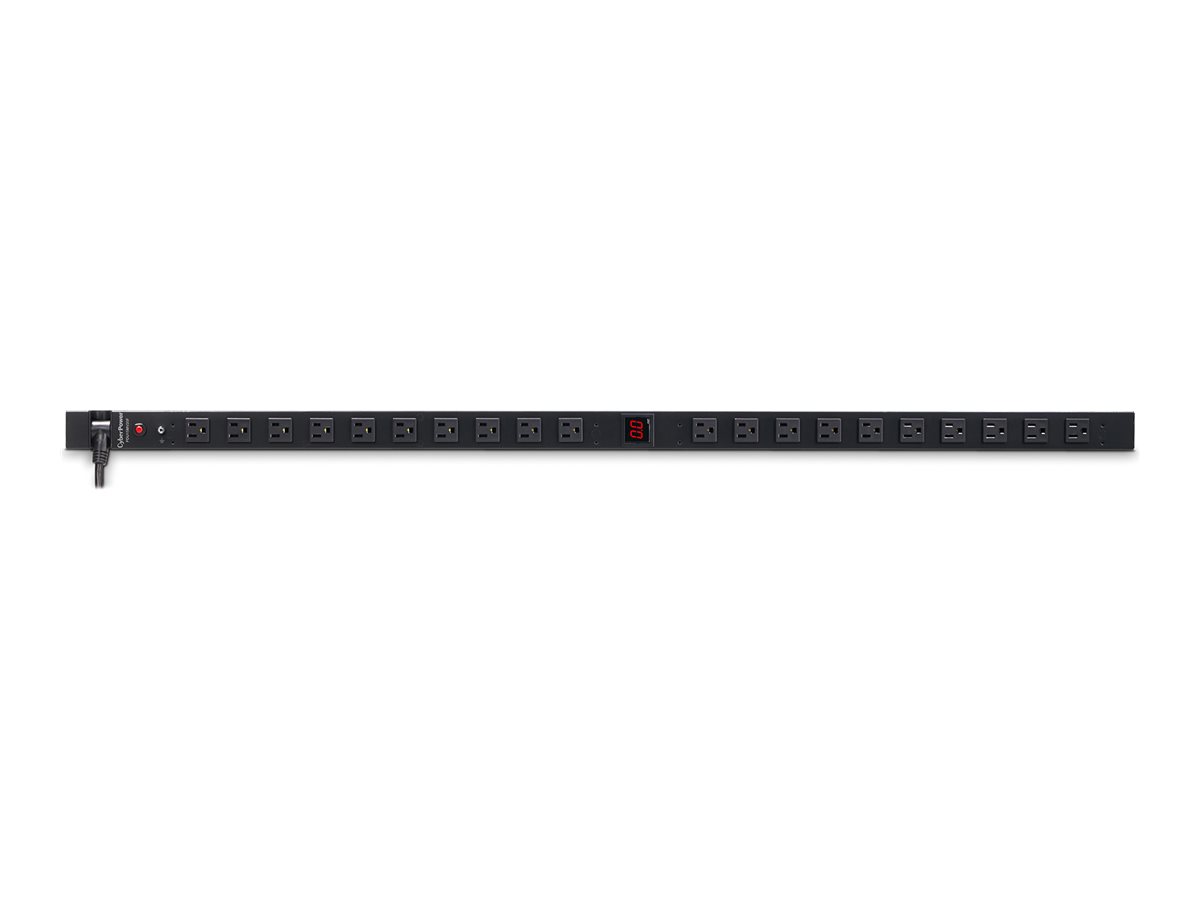

CyberPower Basic Series PDU15MV20F
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
CyberPower Basic Series PDU15MV20F
- Power distribution unit (rack-mountable)
- AC 120 V
- input: NEMA 5-15
- output connectors: 20 (NEMA 5-15)
- 0U
- for OfficePower CPS1500; Smart App Sinewave PR1000, PR1500, PR750
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU15MV20F |
| SHI Part #: | 21577197 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | CyberPower |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CyberPower Basic Series PDU15MV20F - Power distribution unit (rack-mountable) - AC 120 V - input: NEMA 5-15 - output connectors: 20 (NEMA 5-15) - 0U - for OfficePower CPS1500; Smart App Sinewave PR1000, PR1500, PR750 |
| Manufacturer | CyberPower |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 122 cm |
| Dimensions & Weight / Width | 4.5 cm |
| Header / Brand | Cyberpower |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 20 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | Limited lifetime warranty |
| Compatibility Information | |
| Designed For |
|
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 122 cm |
| Width | 4.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | UL 1363, CSA C22.2, RoHS, ETL |
| Features | Wall mountable, front connectivity, rugged, LCD display, current meter, vertical orientation |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 125 V |
| Max Electric Current | 15 A |
| Output Voltage | AC 120 V |
| Power Output Connectors Details | 20 x power NEMA 5-15 |
