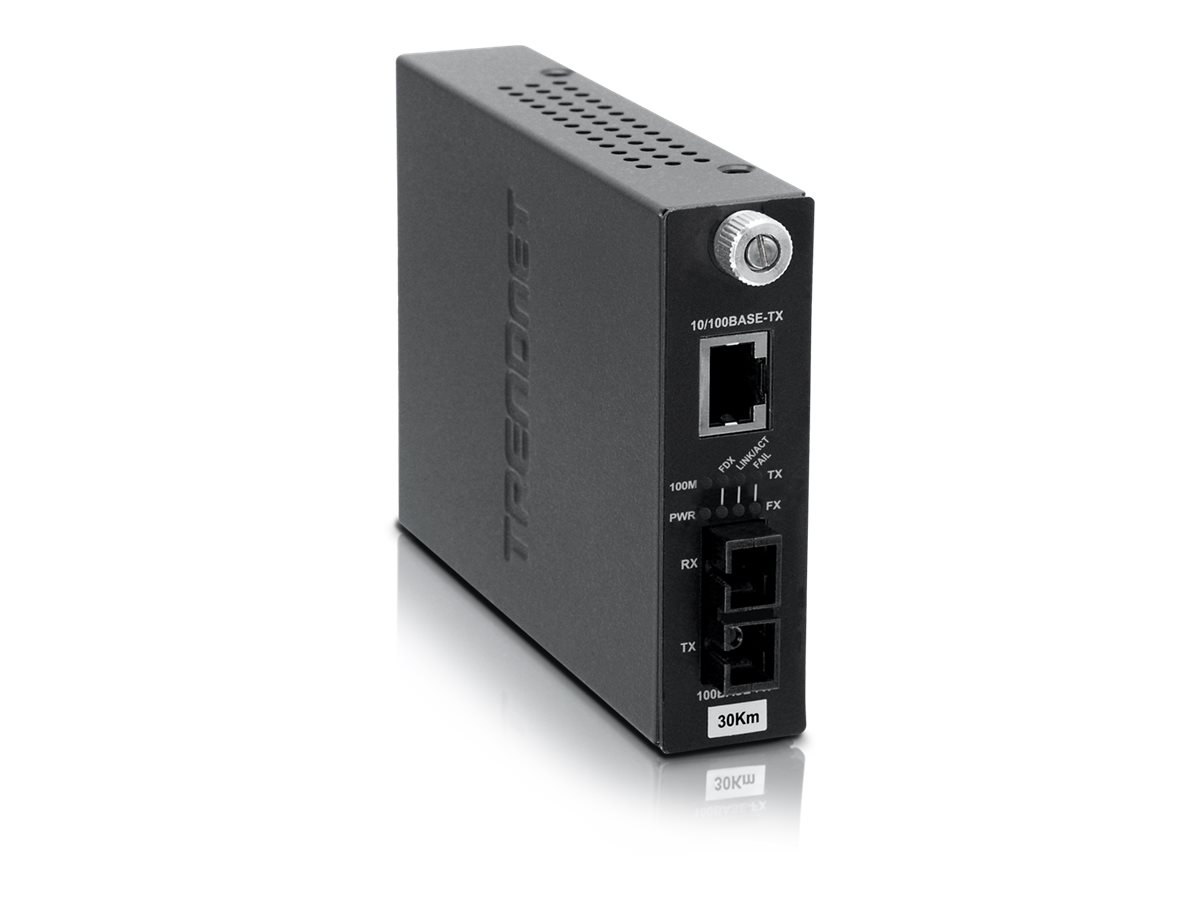

TRENDnet TFC-110S30i
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
TRENDnet TFC-110S30i
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-FX, 100Base-TX
- SC single-mode / RJ-45
- up to 30 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TFC-110S30i |
| SHI Part #: | 17011031 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | TRENDnet TFC-110S30i - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - SC single-mode / RJ-45 - up to 30 km - 1310 nm - TAA Compliant |
| Manufacturer | TRENDnet |
| MSRP | $127.32 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.8 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 354 g |
| Dimensions & Weight / Width | 12 cm |
| Header / Brand | TRENDnet |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 8.8 cm |
| Height | 2.5 cm |
| Weight | 354 g |
| Width | 12 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC |
| Rack Mounting Kit | Optional |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Link Loss Return (LLR), Link Loss Carry Forward (LLCF), wall mountable |
| Max Transfer Distance | 30 km |
| Optical Wave Length | 1310 nm |
| Remote Management Protocol | SNMP |
| Status Indicators | Port transmission speed, port duplex mode, power, link/activity |
| Power | |
| Power Device | External power adapter |
| Power Provided | 7.2 Watt |
