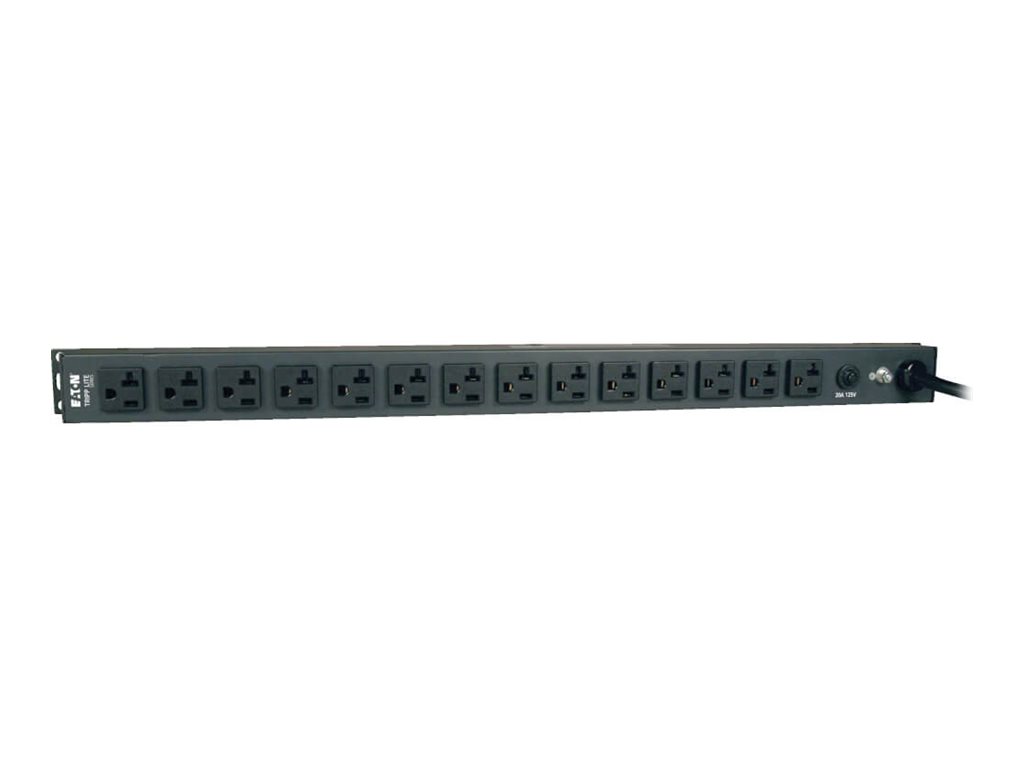

Tripp Lite PDU Basic 120V 2.4kW 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Tripp Lite PDU Basic 120V 2.4kW 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM
- Vertical rackmount
- power distribution unit (rack-mountable)
- 20 A
- AC 120 V
- 2.4 kW
- input: NEMA L5-20
- output connectors: 14 (NEMA 5-15/20)
- 0U
- 24"
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | PDU1420T |
| SHI Part #: | 14975997 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Power Cables
- Power cable
- NEMA 5-20 (M) to NEMA L5-20 (F)
- 15 cm
- 10A, 125V, 18 AWG, 10 ft. (3.05 m), Black
- Power cable
- power IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 3 m
- black
- Power cable
- IEC 60320 C13 to NEMA 5-15 (M)
- AC 110 V
- 1.8 m
- black
Warranties
- Extended service agreement
- parts and labor
- 1 year
- Extended service agreement
- parts and labor
- 3 years
- Extended service agreement
- parts and labor
- 2 years
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Tripp Lite PDU Basic 120V 2.4kW 20A 5-15/20R 14 Outlet L5-20P Vertical 0URM - Vertical rackmount - power distribution unit (rack-mountable) - 20 A - AC 120 V - 2.4 kW - input: NEMA L5-20 - output connectors: 14 (NEMA 5-15/20) - 0U - 24" |
| Manufacturer | Eaton |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Weight | 2.5 kg |
| Dimensions & Weight / Width | 65.4 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Tripp Lite |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 14 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 4.5 cm |
| Weight | 2.5 kg |
| Width | 65.4 cm |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Rack Size | 24" |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 4.57 m |
| Compliant Standards | TUV, UL 60950, CSA 22.2 No. 60950 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L5-20 |
| Input Voltage | AC 120 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Capacity | 2.4 kW |
| Power Output Connectors Details | 14 x power NEMA 5-15/20 |
