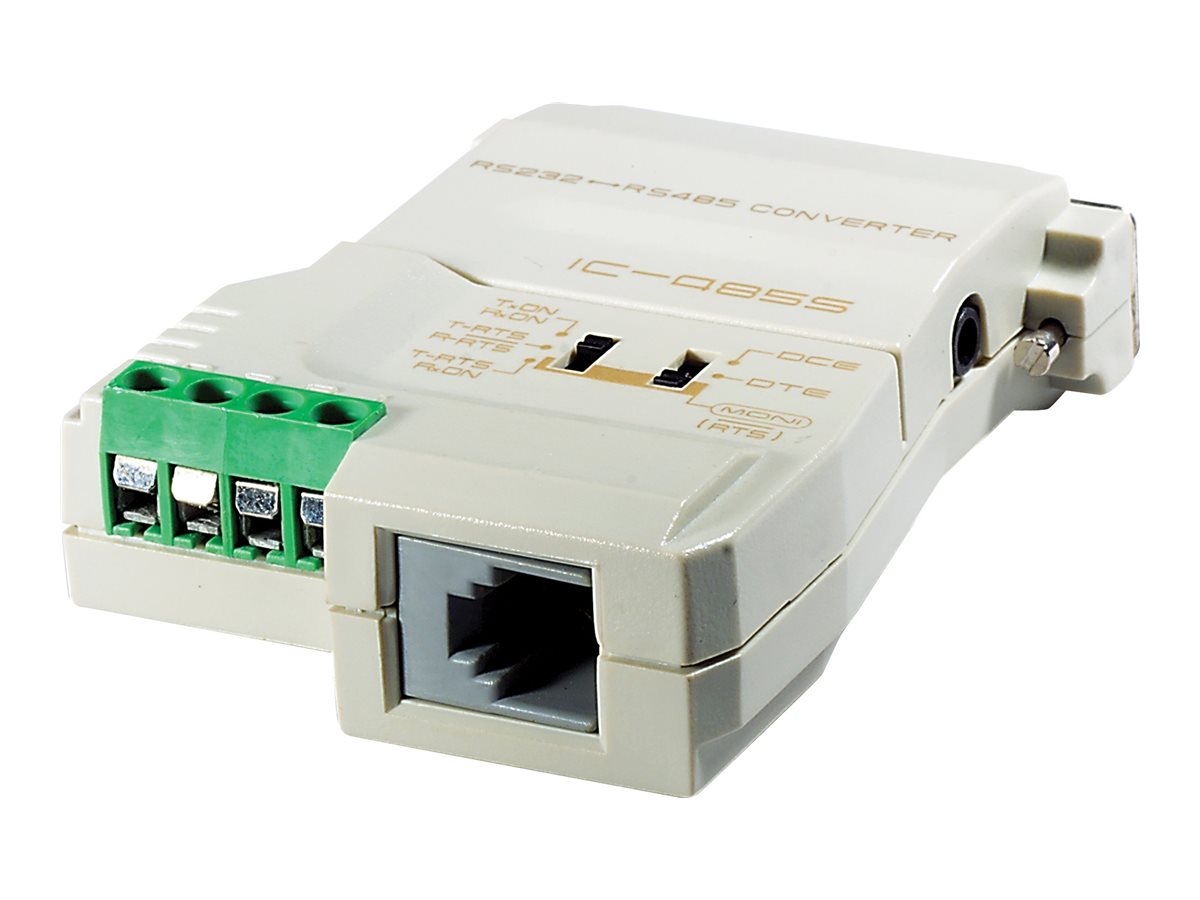

ATEN IC485S - Serial adapter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ATEN IC485S - Serial adapter
- RS-232
- RS-422/485
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | IC485S |
| SHI Part #: | 12566357 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | ATEN |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | ATEN IC485S - Serial adapter - RS-232 - RS-422/485 |
| Manufacturer | ATEN |
| MSRP | $100.65 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.9 cm |
| Dimensions & Weight / Height | 2.1 cm |
| Dimensions & Weight / Weight | 50 g |
| Dimensions & Weight / Width | 5.45 cm |
| Header / Brand | ATEN |
| Miscellaneous / Product Color | White |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 115.2 Kbps |
| Networking / Type | Serial adapter |
| Packaged Quantity | 1 |
| System Requirements / OS Required | Microsoft Windows 2000 / XP |
| Dimensions & Weight | |
| Depth | 7.9 cm |
| Height | 2.1 cm |
| Weight | 50 g |
| Width | 5.45 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 80% RH (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Serial adapter |
| Form Factor | External |
| Interface (Bus) Type | Serial RS-232 |
| Miscellaneous | |
| Included Accessories | Power adapter |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | RS-422, RS-485 |
| Data Transfer Rate | 115.2 Kbps |
| Features | Selectable DTE / DCE interface, up to 1200 m transmission distance, plastic housing |
| Ports | RS-422/485 |
| Power | |
| Power Consumption Operational | 0.82 Watt |
| Software / System Requirements | |
| OS Required | Microsoft Windows 2000 / XP |
